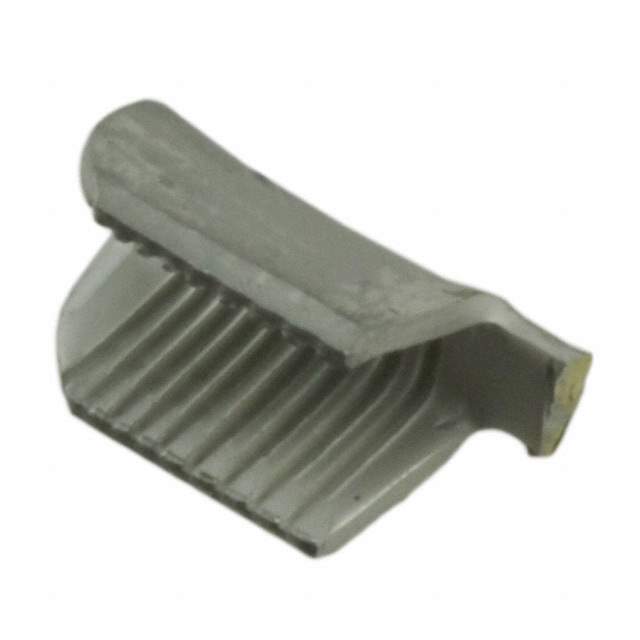

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Magnetic Wire Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Style Pigtail
Terminal Type Splice
Termination Crimp
Wire Gauge 600-3000 CMA
Features Serrated Mating Area
Base Product Number 62304
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -62304-2-CSI,A100760TR,62304-2-ND,-62304-2-SI,623042,2266-62304-2TR,A100760CT
Standard Package 30,000
Win Source Part Number 1333468-62304-2
Ultra Librarian 3D Model Ultra Librarian 62304-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333468-62304-2 electronic component is a pigtail style magnetic wire connector with a serrated mating area.

  • Wire Gauge Range: 600-3000 CMA
  • Termination: crimp
  • Standard Package: 30,000 units
  • ECCN: EAR99
  • REACH Status: vendor undefined
  • RoHS Status: ROHS3 compliant
