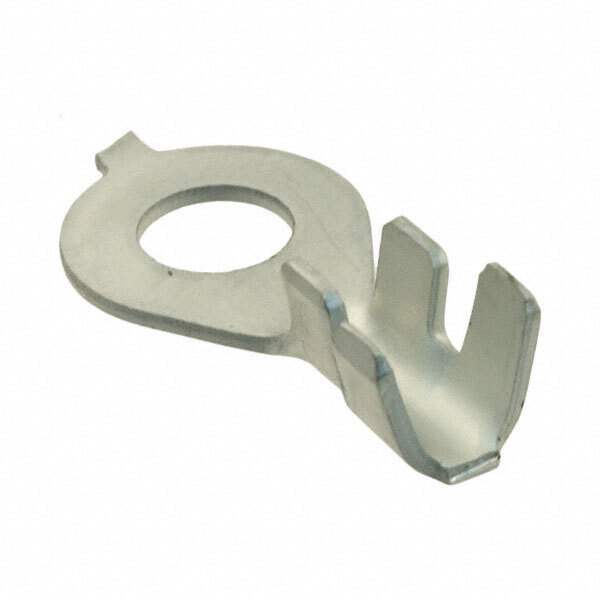

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Ring Connectors
Part Status Active
Terminal Type Circular
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.535" (13.59mm)
Length - Overall 1.048" (26.62mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Non-Insulated
Ultra Librarian 3D Model Ultra Librarian 61844-1 CAD Model

Description

Closed Ring Tongue Terminal, 12 – 10 AWG, 1/4 Stud, 6.35 mm [.25 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
