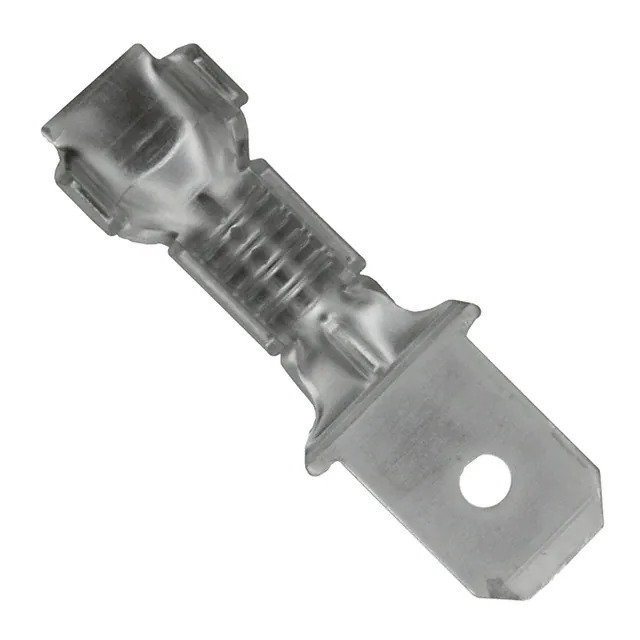

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.675" (17.15mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.150" (3.05mm ~ 3.81mm)
Base Product Number 61687
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363007-61687-2
Ultra Librarian 3D Model Ultra Librarian 61687-2 CAD Model

Description

The TE Connectivity AMP Connectors Quick Disconnect Connectors are reliable and efficient connectors for quick connect and disconnect applications.

  • Gender: Male
  • Terminal Type: Standard
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Insulation Diameter: 0.120" ~ 0.150" (3.05mm ~ 3.81mm)
  • Length Overall: 0.675" (17.15mm)
  • Series: Faston
  • Packaging: Tape & Reel
