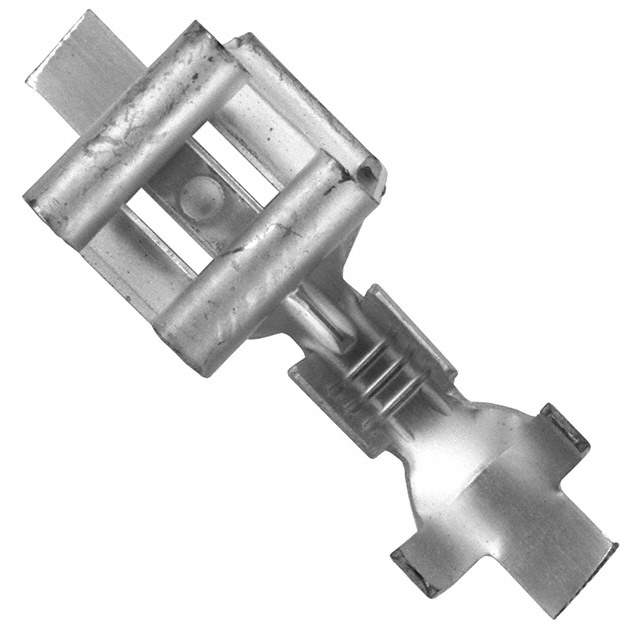

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.170" ~ 0.220" (4.32mm ~ 5.59mm)
Base Product Number 60764
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27677CT,60764-2-ND,607642,-60764-2-SI,A27677,A27677-ND,A27677TR,2266-60764-2TR
Standard Package 8,000
Win Source Part Number 1333705-60764-2
Ultra Librarian 3D Model Ultra Librarian 60764-2 CAD Model

Description

TE Connectivity AMP Connectors 1333705-60764-2 is a quick disconnect connector with a female gender and a non-insulated insulation.

  • Gender: Female
  • Insulation: Non-Insulated
  • Wire Gauge: 14-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Contact Finish: Tin
  • Length: 0.170" ~ 0.220" (4.32mm ~ 5.59mm)
  • Termination Type: Crimp
  • Mounting: Free Hanging (in-line) and Right Angle
  • ECCN: EAR99 Compliant
  • RoHS3: Compliant
  • Series: 60764
  • Packaging: Reel
  • Standard Package: 8,000 units
