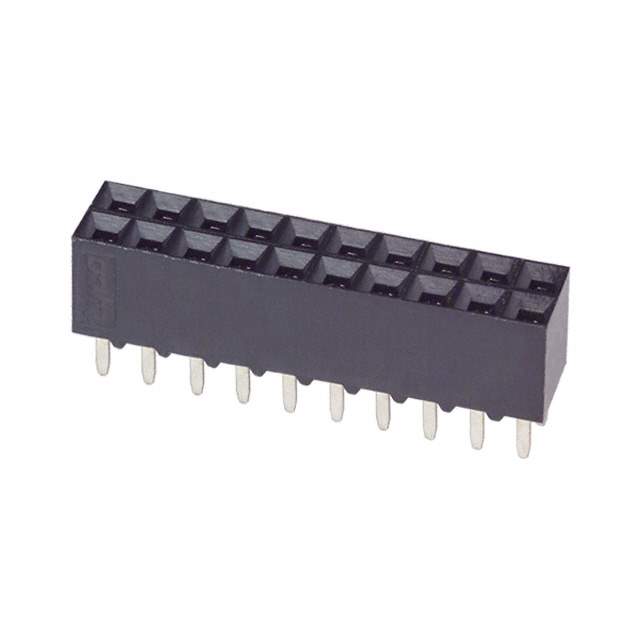

Same model may have multiple batches, images only for reference.

6-534998-0

Name: 6-534998-0
Brand: TE Connectivity
SKU: 1332079
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6-534998-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.1 GOLD PCB / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.265" (6.73mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2A
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	150.0µin (3.81µm)
Base Product Number	534998
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	65349980,A32959,2266-6-534998-0
Standard Package	22
Win Source Part Number	1332079-6-534998-0
Ultra Librarian 3D Model	Ultra Librarian 6-534998-0 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1332079-6-534998-0 is a rectangular connector that has 20 positions and is packaged in a tube.

Positions: 20
Packaging: Tube
Connector Type: Receptacle
Contact Type: Female Socket
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Voltage Rating: -
ECCN: EAR99
RoHS Compliant: Yes
