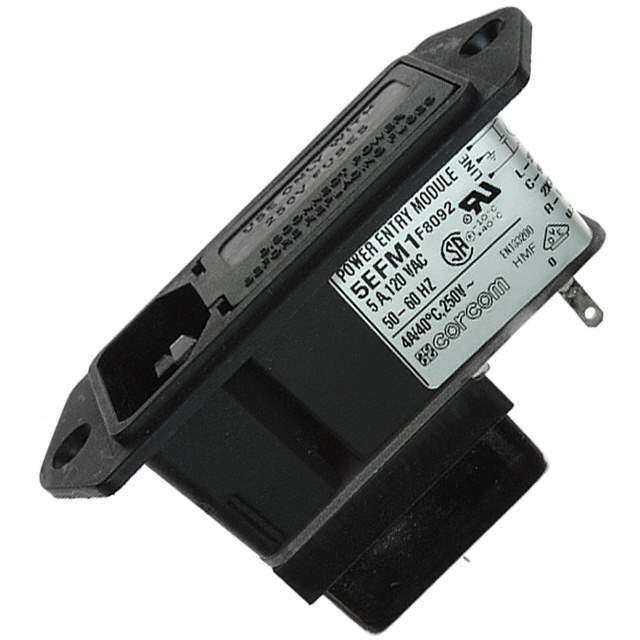

5EFM1 Real Image
Same model may have multiple batches, images only for reference.

5EFM1

Part No 5EFM1
Manufacturer TE Connectivity
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT MOD RCPT IEC320-C14 PNL  /  Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series M, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 5A
Voltage - IEC 120VAC
Current - UL 4A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.110" (2.8mm)
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 63.25mm x 28.96mm
Approval Agency CSA, UL, VDE
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8537.10.9170
Other Names CCM1020,CCM1020-NDR,2-6609129-1,2-1609129-1,1609129-1
Standard Package 24
Win Source Part Number 1056924-5EFM1
Ultra Librarian 3D Model Ultra Librarian 5EFM1 CAD Model

Description

This electronic component has a Win Source Part Number of 1056924-5EFM1 and belongs to the Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules category.

  • Series: M, Corcom
  • Positions: 3
  • Current - IEC: 5A
  • Voltage - IEC: 120VAC
  • Current - UL: 4A
  • Voltage - UL: 250VAC
  • Connector Type: Receptacle, Male Blades - Module
  • Termination: Quick Connect - 0.110" (2.8mm)
  • Connector Style: IEC 320-C14
  • Type: Filtered (EMI, RFI) - Commercial
  • Fuse Holder and Drawer: Yes
  • Panel Cutout Dimensions: Rectangular - 63.25mm x 28.96mm
  • Mounting Type: Panel Mount, Flange
  • REACH: REACH unaffected
  • Approval Agency: CSA, UL, VDE
