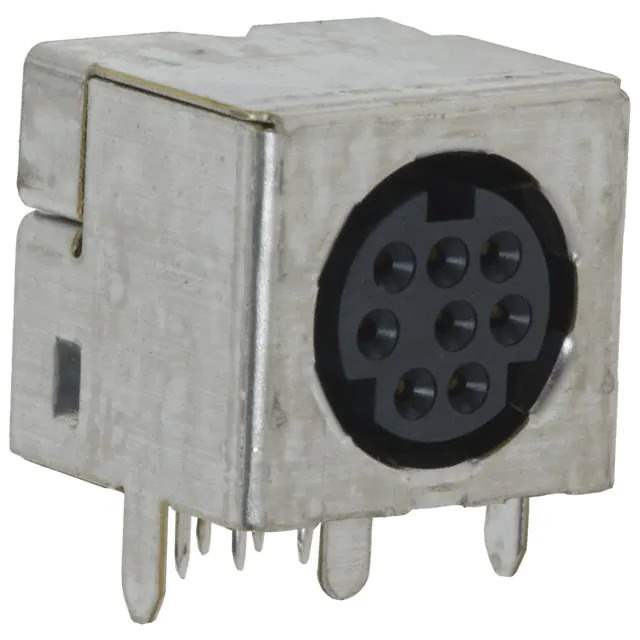

5749267-1 Real Image
Same model may have multiple batches, images only for reference.

5749267-1

Part No 5749267-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE MINI DIN 8P SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr TE Connectivity
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 8
Shell Size - Insert Mini DIN
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VDC
Temperature Range - Operating -55°C ~ 105°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Applications Audio, Video
Base Product Number 5749267
Standard Package 37 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 856592-5749267-1
Ultra Librarian 3D Model Ultra Librarian 5749267-1 CAD Model

Description

The 856592-5749267-1 Circular Connector Assembly is a high-quality electronic component designed for audio and video applications. It is manufactured by TE Connectivity.

  • Termination: Solder
  • Fastening Type: Push-Pull
  • Positions: 8
  • Connector Type: Receptacle with Female Sockets
  • Shielded: Yes
  • Voltage Rating: 30VDC
  • Material: Copper Alloy
  • Temperature Range: -55°C to 105°C
