5748677-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5748677-1

Part No 5748677-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG SHLD
Datasheet
5748677-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Part Status Active
Accessory Type Two Piece Backshell
Number of Positions 9
Compatible Shell Size E
Compatible D-Sub Size 9pos and HD15pos
Cable Type Round
Shielding Shielded
Material Acrylonitrile Butadiene Styrene (ABS)
Ultra Librarian 3D Model Ultra Librarian 5748677-1 CAD Model

Description

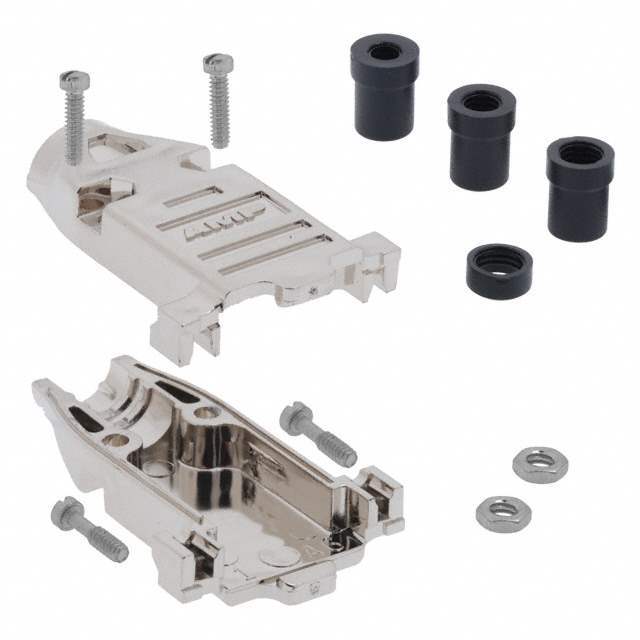

9 Position Two Piece Backshell Connector Silver 180° Shielded
