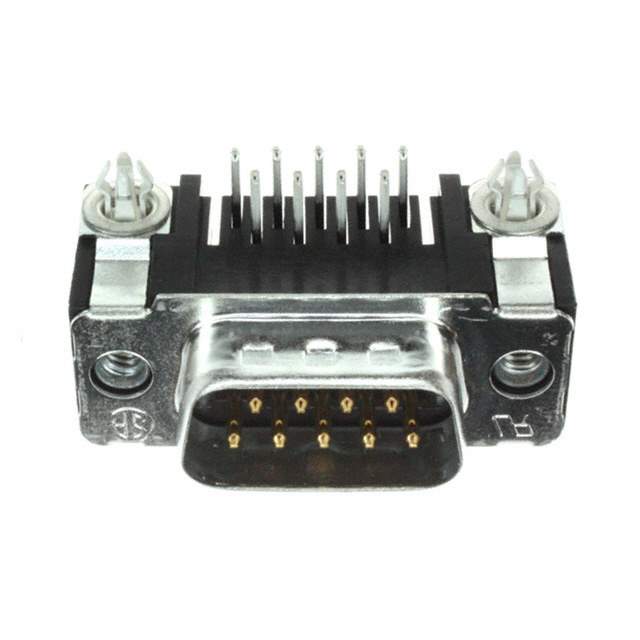

5747840-4 Real Image
Same model may have multiple batches, images only for reference.

5747840-4

Part No 5747840-4
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 9POS R/A SLDR  /  9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747840
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57478404,A32092,-5747840-4-CSI,-5747840-4-SI
Standard Package 130
Win Source Part Number 1193365-5747840-4
Ultra Librarian 3D Model Ultra Librarian 5747840-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 1193365-5747840-4 is a D-sub connector with a plug, male pins connector type.

  • Connector Type: D-Sub
  • Connector Type: Plug, Male Pins
  • Number of Positions: 9
  • Number of Rows: 2
  • Mounting Type: Through Hole, Right Angle
  • Material: Steel
  • Plating: Tin Plated
  • Contact Finish: Gold
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Operating Temperature: -55°C to 105°C
  • Series: AMPLIMITE HD-20
  • Features: Board Lock, Grounding Strap, Grounding Indents
  • Shell Size: 1 (DE, E)
  • Backset Spacing: 0.318" (8.08mm)
