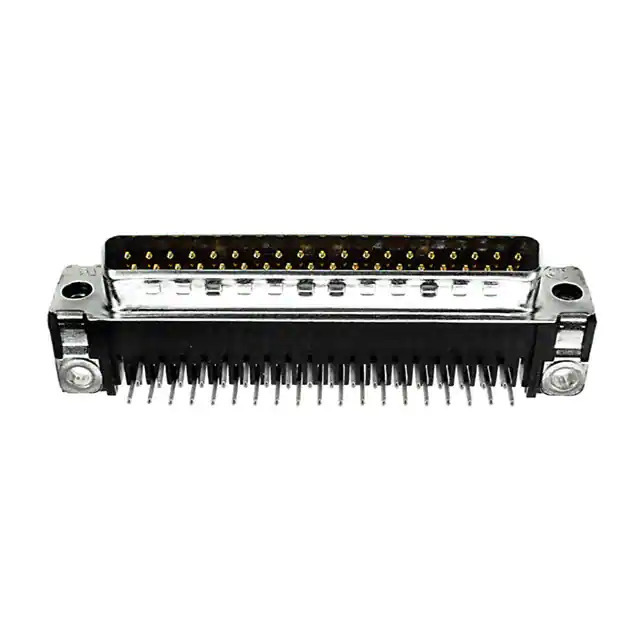

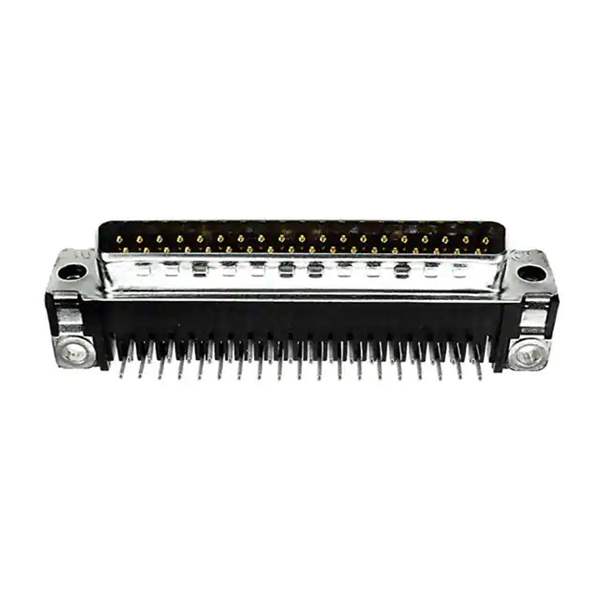

5747252-4 TE Connectivity
Same model may have multiple batches, images only for reference.

5747252-4

Part No 5747252-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 37POS R/A SLDR / 37 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material -
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747252
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365126-5747252-4
Ultra Librarian 3D Model Ultra Librarian 5747252-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 D-Sub Connector Assembly is a versatile and reliable connector solution for your electronic projects.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: AMPLIMITE HD-20
  • Temperature Range: -55°C to 105°C
  • Positions: 37
  • Rows: 2
  • Gender: Male Pins
  • Material (Contact): Brass
  • Contact Finish: Gold
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Housing Material: Steel
  • Housing Finish: Tin Plated
  • Mounting Type: Through Hole, Right Angle
  • Features: Ground Straps, Grounding Indents
  • Flammability Rating: UL94 V-0
  • Shell Size: 4 (DC, C)
  • Product Status: Active
