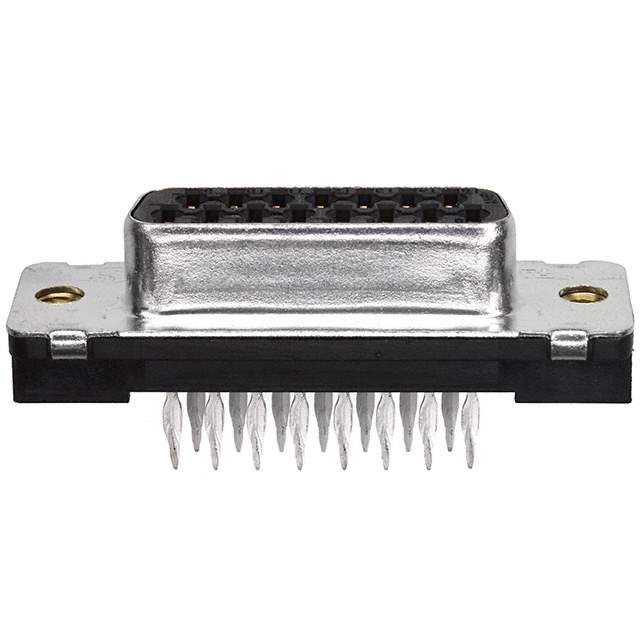

Part No 5747141-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15P VERT PRESS / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Press-Fit
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Color Black
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747141
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 57471412,A32042
Standard Package 104
Win Source Part Number 1333218-5747141-2
Ultra Librarian 3D Model Ultra Librarian 5747141-2 CAD Model

Description

TE Connectivity AMP Connectors D-Sub connector assemblies are designed to provide reliable and efficient performance in a variety of applications.

  • Positions: 15
  • Pitch: 0.100 inches
  • Connector Type: Receptacle
  • Contact Application: Signal
  • Contact Finish: Gold-Plated
  • Mounting: Through-Hole
  • Housing/Shell Flange Feature: Yes
  • Shell Material: Steel, Tin-Plated
  • Dielectric Material: Thermoplastic
  • Operating Temperature Range: -55°C to 105°C
  • RoHS Compliant: Yes
