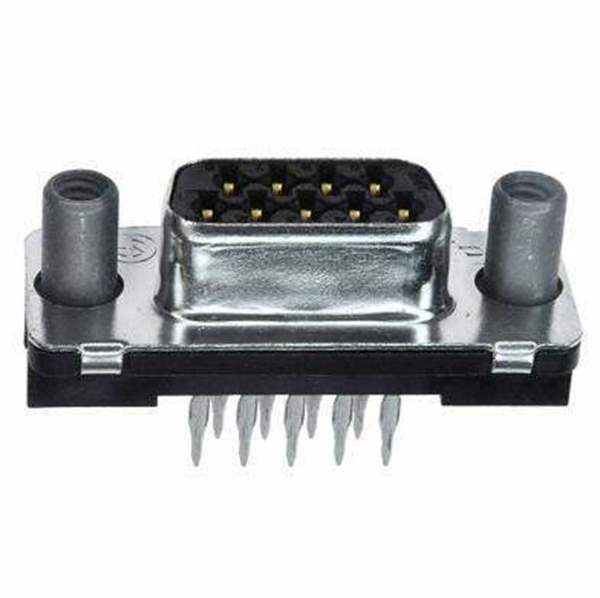

5747091-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5747091-2

Part No 5747091-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT PRESS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Product Status Active
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Press-Fit
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Win Source Part Number WS1209526-5747091-2
Ultra Librarian 3D Model Ultra Librarian 5747091-2 CAD Model

Description

9 Position D-Sub Receptacle, Female Sockets Connector
