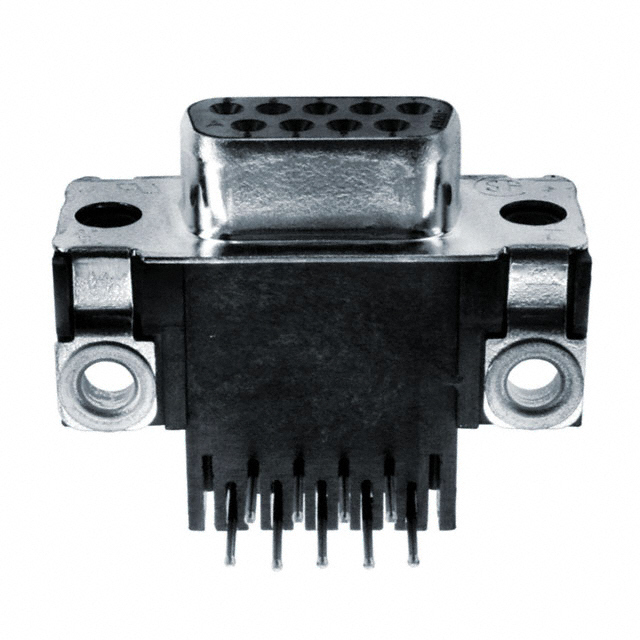

Same model may have multiple batches, images only for reference.
5745984-4 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5745984-4

Part No 5745984-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Features Ground Strap
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1624068-5745984-4
Ultra Librarian 3D Model Ultra Librarian 5745984-4 CAD Model
