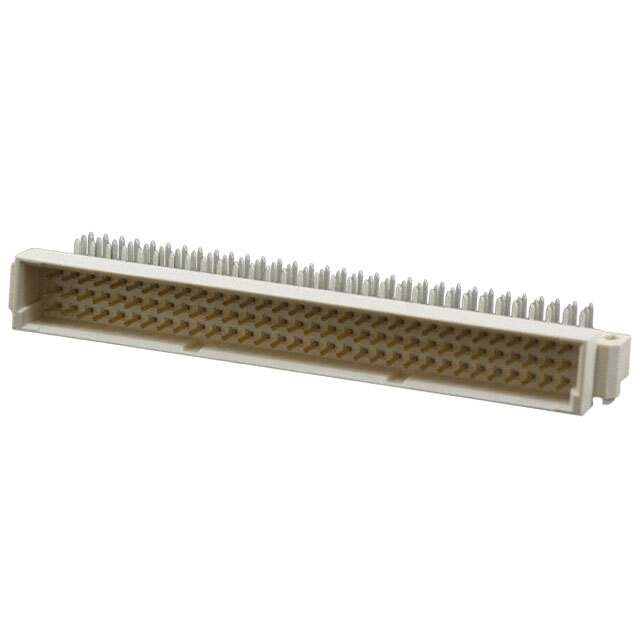

5650473-5 Real Image
Same model may have multiple batches, images only for reference.

5650473-5

Part No 5650473-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN PLUG 96POS PCB RA GOLD / 96 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5650473
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5650473-5-SI,Q8190678A,-5650473-5-CSI,56504735
Standard Package 30
Win Source Part Number 1333124-5650473-5
Ultra Librarian 3D Model Ultra Librarian 5650473-5 CAD Model

Description

The TE Connectivity AMP Connectors 1333124-5650473-5 is a DIN 41612 backplane connector with a pitch of 0.100" (2.54mm) and 96 positions.

  • Connector Type: Male Plug
  • Termination: Solder
  • Contact Finish: Gold
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
  • Level, Class: 2
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
  • Standard Package: 30
