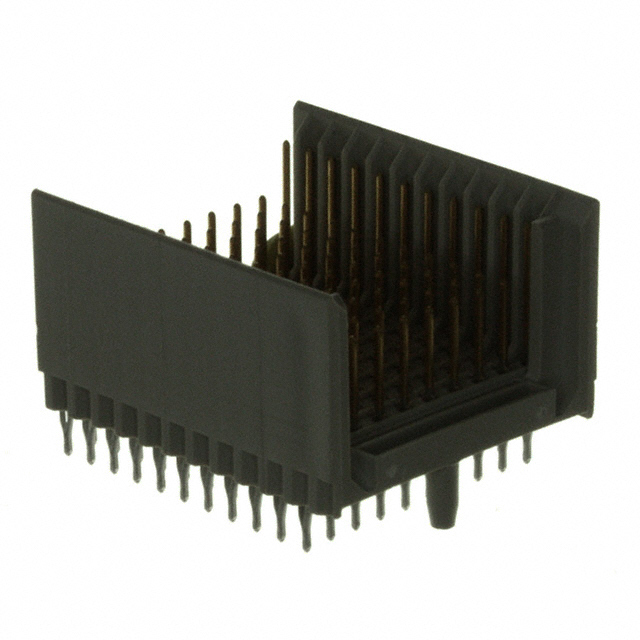

5646513-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5646513-1

Part No 5646513-1
Manufacturer TE Connectivity
Catalog Hard Metric, Standard
Description CONN HEADER 110POS 2MM PRESS-FIT
Datasheet
5646513-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
Connector Type Header, Male Pins
Connector Style F 11
Number of Positions 110 (88 + 22 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8 + 2
Mounting Type Through Hole
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 5646513-1 CAD Model
