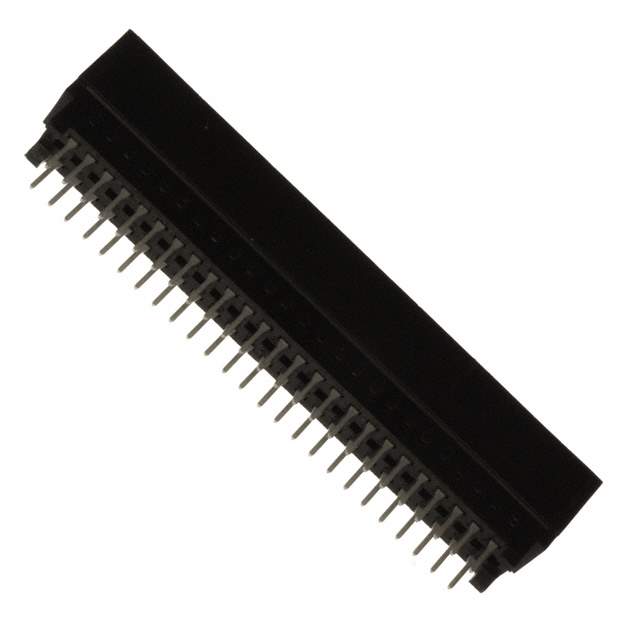

5530843-5 Real Image
Same model may have multiple batches, images only for reference.

5530843-5

Part No 5530843-5
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 50POS 0.100 / 50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 50
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5530843
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5530843-5-SI,55308435,A31718
Standard Package 126
Win Source Part Number 1334110-5530843-5
Ultra Librarian 3D Model Ultra Librarian 5530843-5 CAD Model

Description

The TE Connectivity AMP Connectors 1147562 is a female card edge connector.

  • Mounting Type: Through-Hole
  • Standard Package: 126
  • Pitch: 0.100" (2.54mm)
  • Positions: 50
  • Rows: 2
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Polyester, Glass Filled
  • Card Type: Non-Specified Dual Edge
  • Operating Temperature: -55°C to 85°C
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
