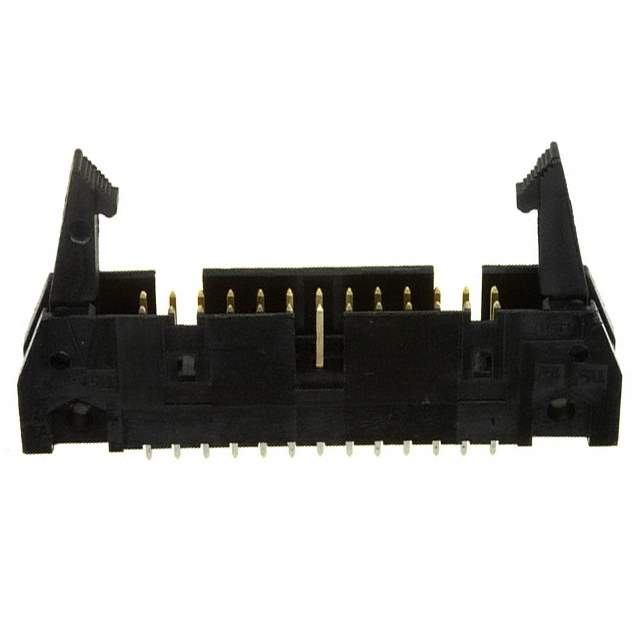

The 1198068 is a male pin header connector from TE Connectivity's AMP-Latch series.

• Part Status: Active
• Connector Type: Header, Male Pin
• Number of Positions: 26
• Pitch: 0.100" (2.54mm)
• Number of Rows: 2
• Row Spacing: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Fastening Type: Keying Slot, Mounting Flange, Latch Lock/Eject Hooks
• Contact Finish - Mating: Gold or Gold-Palladium
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Finish Thickness - Post: 100.0µin (2.54µm)
• Insulation Height: 0.549" (13.94mm)
• Operating Temperature: -65°C ~ 105°C
• Voltage Rating: 250VAC
• Current Rating (Per Contact): 1A
• Contact Material: Brass
• Mated Stacking Heights: -
• Features: Shrouded
• Material Flammability Rating: UL94 V-0
• Color: Black
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Applications: Board to Cable/Wire
