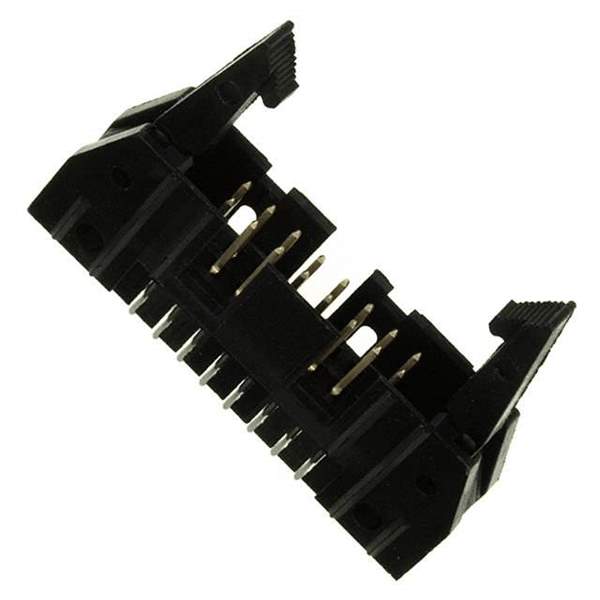

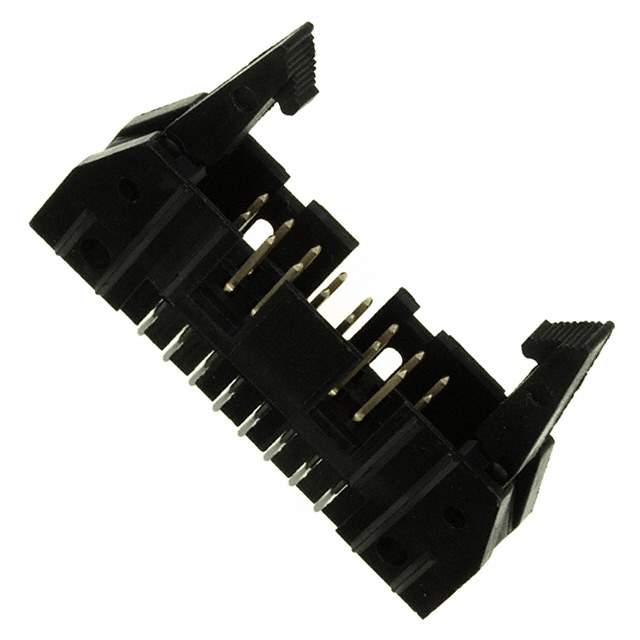

5499922-3 Real Image
Same model may have multiple batches, images only for reference.

5499922-3

Part No 5499922-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499922
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5499922-3-SI,AHK16H,54999223
Standard Package 42
Win Source Part Number 1332699-5499922-3
Ultra Librarian 3D Model Ultra Librarian 5499922-3 CAD Model

Description

The TE Connectivity AMP Connectors 1332699-5499922-3 is a male pin header connector with 16 positions.

  • Positions: 16
  • Voltage Rating: 250VAC
  • Current Rating Per Contact: 1A
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold or Gold-Palladium
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Temperature Range: -65°C to 105°C
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Connector Type: Board-to-Cable/Wire
  • Shrouding: Shrouded-4 Wall
  • Connector Style: Rectangular Connectors, Headers, Male Pins
