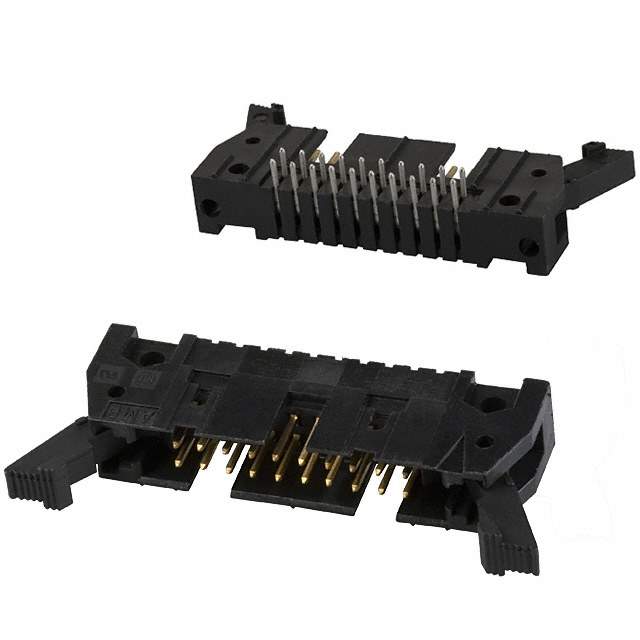

5499913-4

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5499913-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMP-Latch
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.315" (8.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	5499913
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-5499913-4-SI,54999134,AHB20H
Standard Package	48
Win Source Part Number	988584-5499913-4
Ultra Librarian 3D Model	Ultra Librarian 5499913-4 CAD Model

Alternative Products

Description

The AMP-Latch Header Connector is a male pin connector with a keying slot and mounting flange.

Connector Type: Male Pin
Features: Keying Slot, Mounting Flange
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Shrouded: 4 Walls
Pitch-Mating: 0.100” (2.54mm)
Contact Finish-Mating: Gold or Gold-Palladium
Contact Finish-Post: Tin
Contact Material: Brass
Voltage Rating: 250VAC
Current Rating: 1A per Contact
Temperature Range: -65°C to 105°C
Suitable For: Board to Cable/Wire Style
Row Spacing-Mating: 0.100” (2.54mm)
Contact Length-Post: 0.110” (2.79mm)
Insulation Height: 0.315” (8.00mm)
Material Flammability Rating: UL94 V-0
