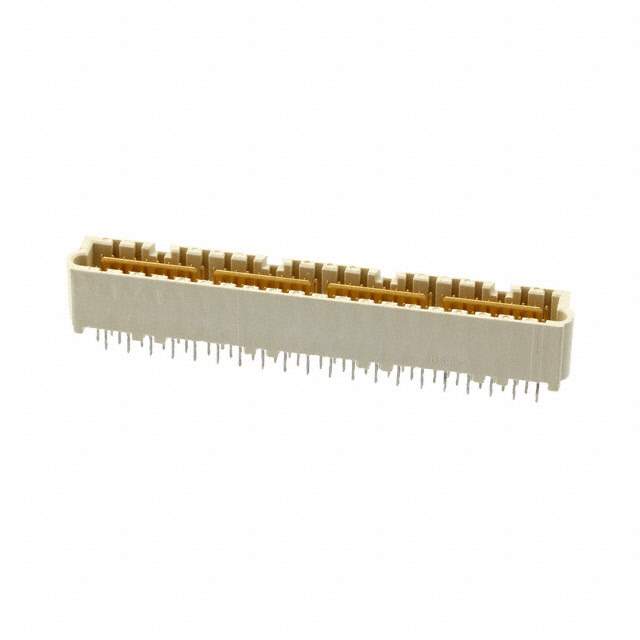

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Micro-Strip
Package Tube
Connector Type Plug
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 80
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.095" (2.41mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features Ground Bus (Plane)
Temperature Range - Operating -65°C ~ 125°C
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 30VAC
Mated Stacking Heights 10.92mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 536280
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -536280-3-SI,A108453
Standard Package 90
Win Source Part Number 1216143-536280-3
Ultra Librarian 3D Model Ultra Librarian 536280-3 CAD Model

Description

The 536280-3 is a 80 position, 2-row, board-to-board connector manufactured by TE Connectivity AMP Connectors.

  • Pitch: 0.050” (1.27mm)
  • Applications: computer and telecommunications equipment, automotive systems, and medical devices
  • Features: ground bus (plane) and a shrouded 4-wall structure
  • Voltage Rating: 30VAC
  • Operating Temperature: -65°C to 125°C
  • Package: tube
  • Standard Package Quantity: 90
