Same model may have multiple batches, images only for reference.

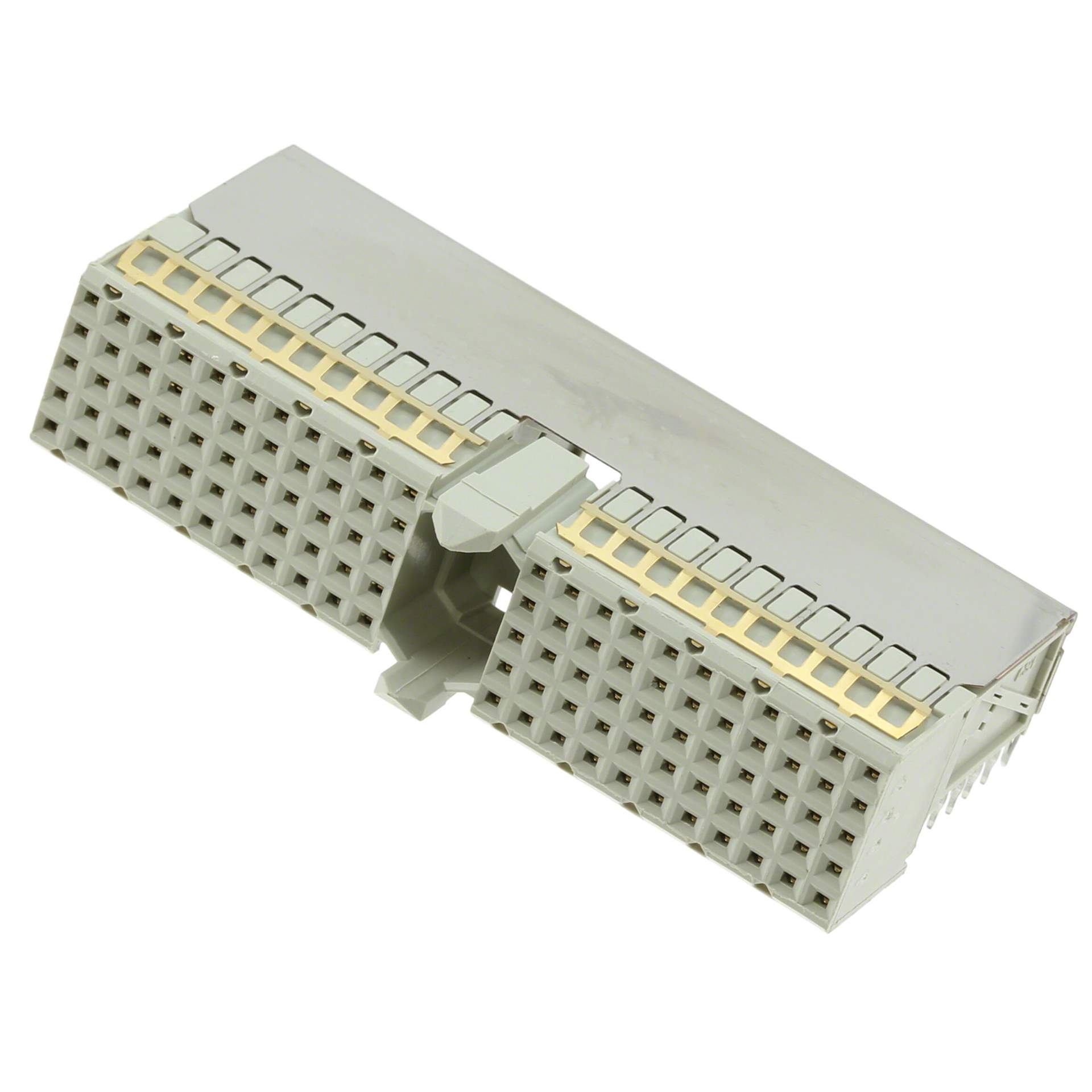

5352068-9 Real Image
Same model may have multiple batches, images only for reference.

5352068-9

Part No 5352068-9
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT / 110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Receptacle, Female Sockets
Connector Style A 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Connector Usage CompactPCI J1/J4
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Base Product Number 5352068
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -5352068-9-SI,53520689,2266-5352068-9
Standard Package 11
Win Source Part Number 1031973-5352068-9
Ultra Librarian 3D Model Ultra Librarian 5352068-9 CAD Model

Description

The 1031973-5352068-9 is a Z-PACK backplane connector with 110 positions and a pitch of 0.079" (2.00mm).

  • Shield Features: upper shield features
  • Type: receptacle with female sockets
  • Positions Loaded: All
  • Rows: 5
  • Termination: press-fit
  • Contact Finish: gold with a thickness of 30.0µin (0.76µm)
  • Package: tube
  • Connector Style: A 22
  • Mounting: through hole with a right angle
