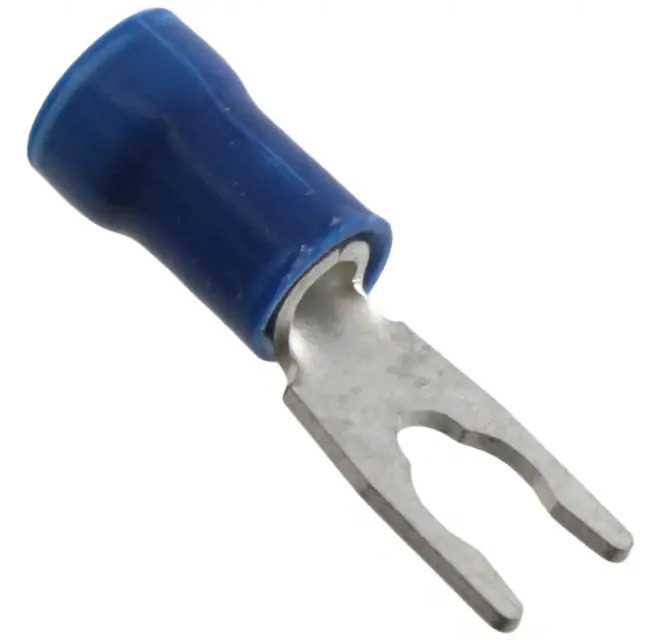

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Spade Connectors
Mfr TE Connectivity AMP Connectors
Series Plasti-Grip
Package Tape & Reel (TR)
Product Status Active
Terminal Type Spring, Snap
Stud/Tab Size 8 Stud
Width - Outer Edges 0.244" (6.20mm)
Length - Overall 0.872" (22.15mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Finish Tin
Contact Material Brass
Insulation Diameter 0.118" ~ 0.193" (3.00mm ~ 4.90mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Length - Ring Center to Termination 0.281" (7.14mm)
Length - Termination 0.416" (10.57mm)
Tongue Inside Opening 0.164" (4.17mm)
Base Product Number 53244
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364882-53244-2
Ultra Librarian 3D Model Ultra Librarian 53244-2 CAD Model

Description

The TE Connectivity AMP Connectors Spade Connector is a high-quality connector designed for use in various electronic applications.

  • Series: Plasti-Grip
  • Mounting Type: Free Hanging (In-Line)
  • Insulated: Yes
  • Length: 0.872 inches (22.15mm)
  • Color: Blue
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Terminal Type: Spring, Snap
  • Termination Type: Crimp
  • Product Status: Active
