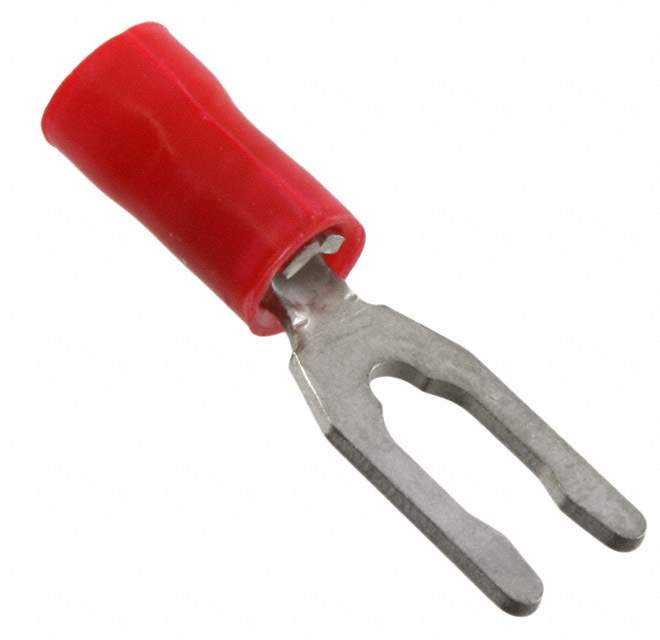

52453-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Spring, Snap
Stud/Tab Size 6 Stud
Width - Outer Edges 0.250" (6.35mm)
Length - Overall 0.945" (24.00mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Finish Tin
Contact Material Phosphor Bronze
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Length - Ring Center to Termination 0.238" (6.05mm)
Length - Termination 0.426" (10.82mm)
Tongue Inside Opening 0.140" (3.56mm)
Base Product Number 52453
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 524531,A100654CT,52453-1-ND,A100654TR,2266-52453-1TR
Standard Package 5,000
Win Source Part Number 1333482-52453-1
Ultra Librarian 3D Model Ultra Librarian 52453-1 CAD Model

Description

The TE Connectivity AMP Connectors 52453-1 is a spade connector that is designed to provide excellent performance in various applications.

  • Type: spring snap
  • Insulation: insulated
  • Color: red
  • Contact Material: phosphor bronze
  • Wire Gauge: 16-22 AWG
  • Insulation: Poly-Vinyl Chloride (PVC)
  • Packaging: reel
  • Width of Outer Edges: 0.250" (6.35mm)
  • Overall Length: 0.945" (24.00mm)
