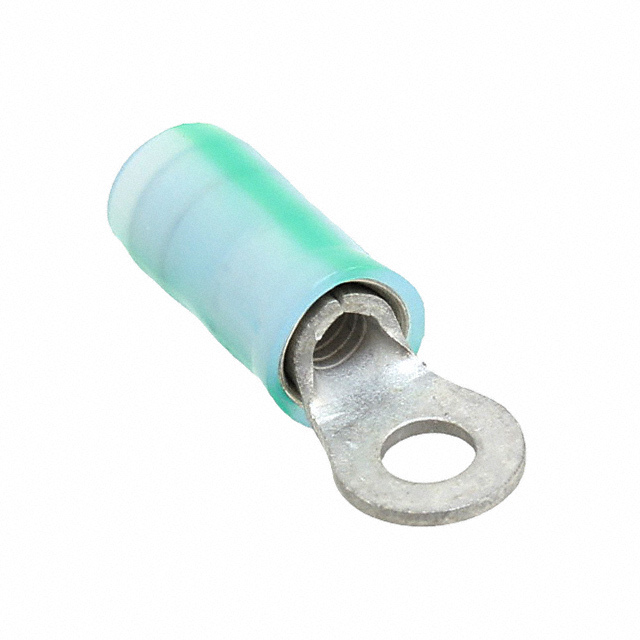

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.045" (1.14mm)
Width - Outer Edges 0.468" (11.89mm)
Length - Overall 1.719" (43.66mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 6 AWG
Insulation Insulated
Color Blue
Contact Material Copper
Contact Finish Tin
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1636064-52265-3
Ultra Librarian 3D Model Ultra Librarian 52265-3 CAD Model
