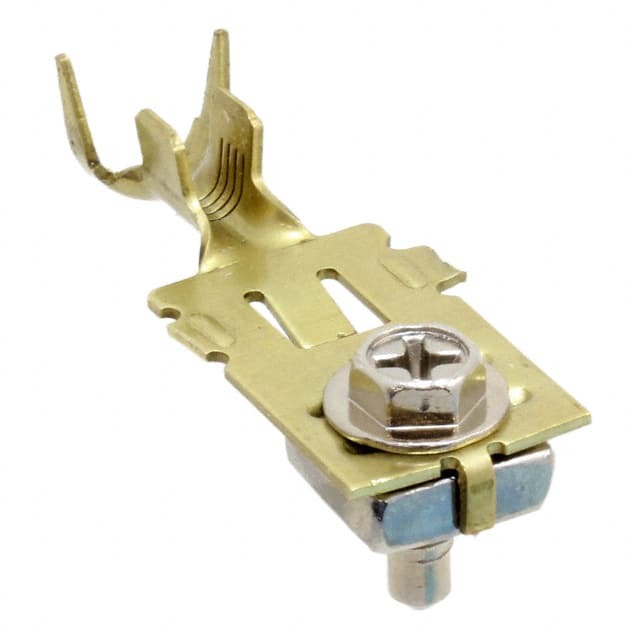

Same model may have multiple batches, images only for reference.
520936-1

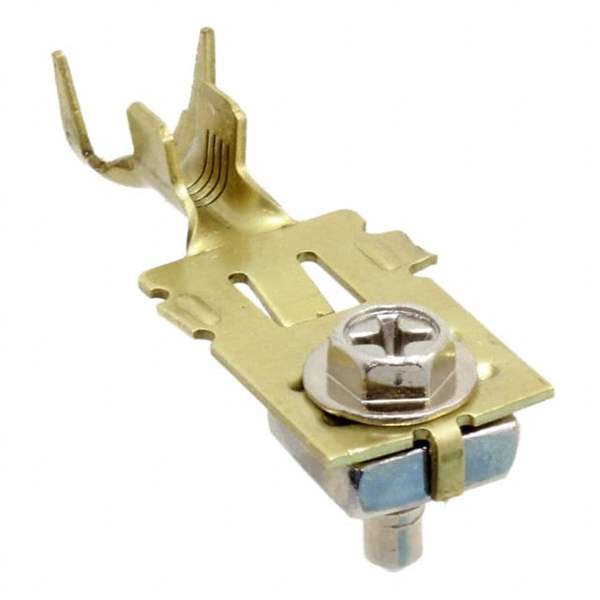

Same model may have multiple batches, images only for reference.

520936-1

Part No 520936-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN TERM RING 10-16AWG CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Specialized Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Power Ring
Termination Crimp
Wire Gauge 10-16 AWG
Base Product Number 520936
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 856400-520936-1
Ultra Librarian 3D Model Ultra Librarian 520936-1 CAD Model

Description

The TE Connectivity 856400-520936-1 is a specialized connector in the terminals category.

  • Terminal Type: Power ring terminal
  • Wire Gauge: 10-16 AWG
  • Package Options: Tape & reel (TR) and cut tape (CT)
  • Standard Package: 8,000 pieces
  • ECCN Code: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor undefined
  • HTSUS Code: 8536.90.4000
  • Base Product Number: 520936
  • Product Status: Active
