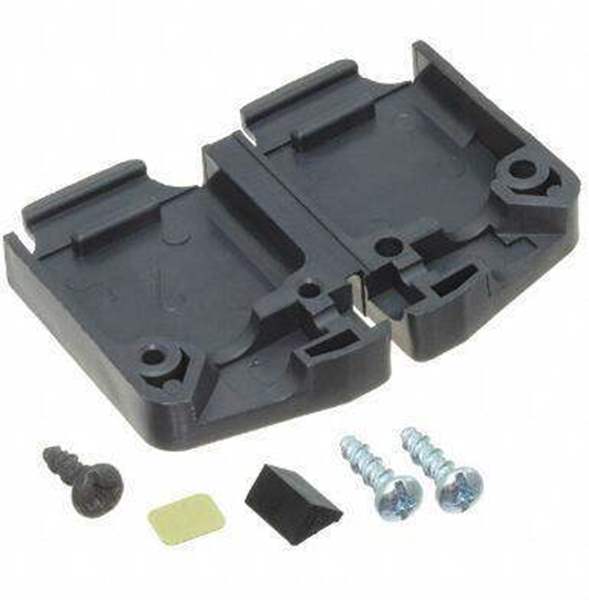

5205730-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5205730-1

Part No 5205730-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 15P 45/180DEG BLK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Backshells, Hoods
Product Status Active
Accessory Type Hinged Backshell
Cable Type Round
Cable Exit 45°, 180°
Shielding Unshielded
Primary Material Plastic
Material Polypropylene (PP)
Hardware Assembly Hardware, Strain Relief
Win Source Part Number WS1209135-5205730-1
Ultra Librarian 3D Model Ultra Librarian 5205730-1 CAD Model

Description

15 Position Hinged Backshell Connector Black 45°, 180° Unshielded
