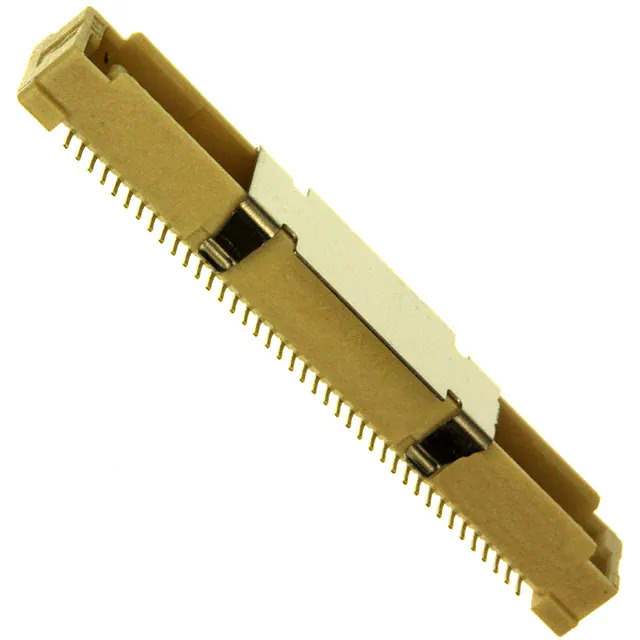

5177986-3

Name: 5177986-3
Brand: TE Connectivity
SKU: 856392
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5177986-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG 80POS SMD GOLD / 80 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	TE Connectivity
Series	Free Height (FH)
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	80
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	5mm, 9mm, 13mm, 17mm
Height Above Board	0.191" (4.85mm)
Base Product Number	5177986
Standard Package	900 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856392-5177986-3
Ultra Librarian 3D Model	Ultra Librarian 5177986-3 CAD Model

Description

The Free Height (FH) series mezzanine connector is a high-quality component for board to board applications.

Positions: 80
Pitch: 0.031" (0.80mm)
Feature: Board guide
Connector: Plug with center strip contacts
Plating: Gold plated
Package: 900 pcs
Packaging: Tape & reel or cut tape packaging
Mounting: Surface mount
Height above Board: 0.191" (4.85mm)
Stacking Heights: 5mm to 17mm
