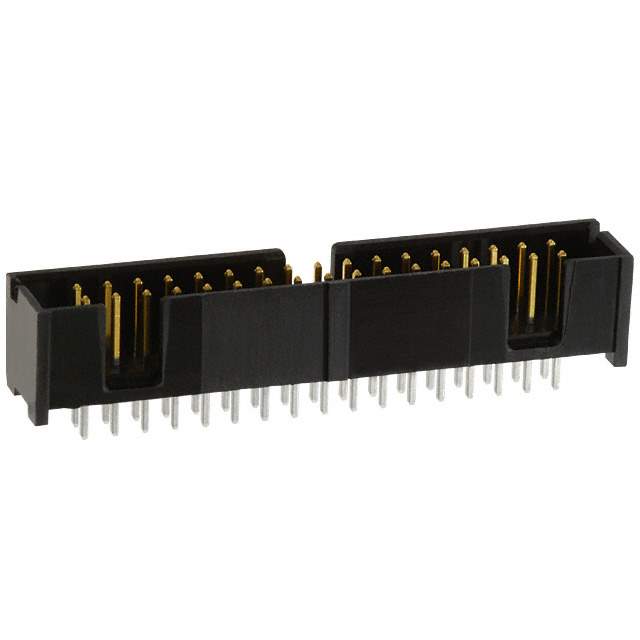

5103309-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5103309
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A33169,51033097,-5103309-7-SI
Standard Package 50
Win Source Part Number 1332686-5103309-7
Ultra Librarian 3D Model Ultra Librarian 5103309-7 CAD Model

Description

The TE Connectivity AMP Connectors 1332686-5103309-7 is a male pin header connector with 34 positions.

  • Positions: 34
  • Mounting Type: Through Hole
  • Pitch - Mating: 0.100" (2.54mm)
  • Current Rating Per Contact: 1A
  • Temperature Range: -65°C to 105°C
  • Shrouding: Shrouded, 4 Walls
  • Features: Keying Slot
  • Packaging: Tube
  • Standard Package: 50
  • ROHS3 Compliant: Yes
  • HTSUS: 8536.69.4040
