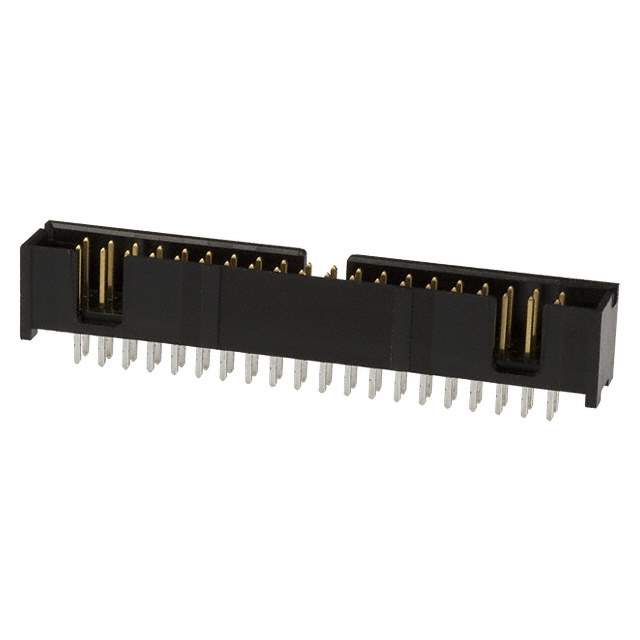

5103308-8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5103308
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 51033088,A33170,2266-5103308-8,-5103308-8-SI
Standard Package 45
Win Source Part Number 1030929-5103308-8
Ultra Librarian 3D Model Ultra Librarian 5103308-8 CAD Model

Description

The 1030929-5103308-8 is a header connector that belongs to the AMP-Latch series.

  • Series: AMP-Latch
  • Positions: 40
  • Keying Slot: Yes
  • Contact Type: Male Pin
  • Rows: Two
  • Termination Type: Solder
  • Fastening Type: Push-Pull
  • Package: Tube
  • Contact Material: Brass
  • Pitch-Mating: 0.100" (2.54mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold or Gold-Palladium, 15.0μin (0.38μm)
  • Contact Finish-Post: Tin, 100.0μin (2.54μm)
  • Insulation Color: Black
  • Mounting Type: Through-Hole
  • Shrouding: Shrouded-4 Wall
  • Contact Length-Post: 0.120" (3.05mm)
  • Contact Length-Mating: 0.240" (6.10mm)
  • Insulation Height: 0.388" (9.86mm)
  • Contact Shape: Square
  • Temperature Range: -65°C to 105°C
