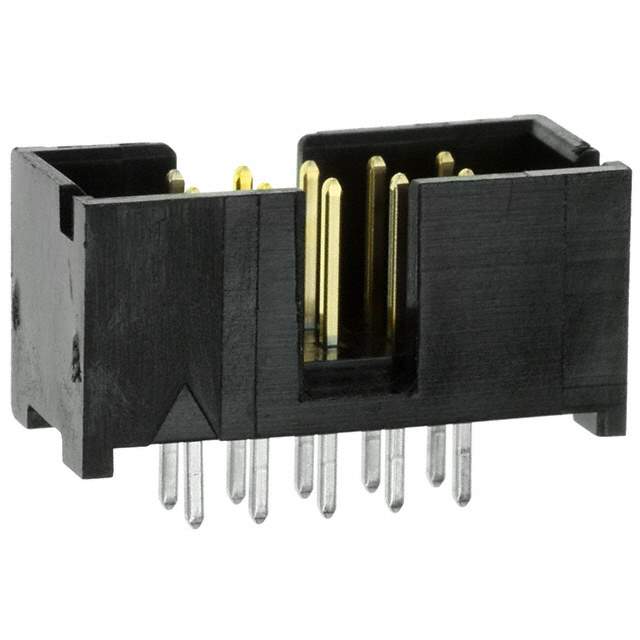

5103308-1

Part No 5103308-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER LOPRO STR 10POS GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A per Contact
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 052075-5103308-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5103308-1 CAD Model

Description

Description

The 5103308-1 offers a blend of durability and efficiency, making it an excellent choice for numerous electronic applications. This component's design maximizes performance while minimizing power consumption.

Applications

  • Wireless communication systems
  • Medical devices
  • Robotics
  • Consumer appliances

Features and Benefits

  • Rugged construction for enhanced durability.
  • Low power requirements streamline system efficiency.
  • Simplified installation process.
  • Offers consistency and reliability across various environments.

Additional Details

With its robust build and efficient design, the 5103308-1 provides long-lasting performance, making it a dependable choice for demanding applications.
