5-747913-2 TE Connectivity
Same model may have multiple batches, images only for reference.

5-747913-2

Part No 5-747913-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

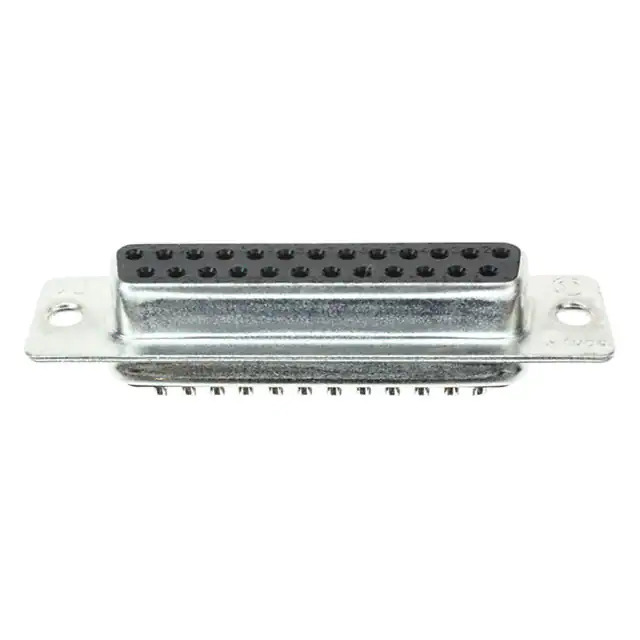

Description CONN D-SUB RCPT 25POS SLDR CUP / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features -
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747913
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365136-5-747913-2
Ultra Librarian 3D Model Ultra Librarian 5-747913-2 CAD Model

Description

The D-Sub Connector Assemblies are a versatile solution for various electrical applications from TE Connectivity AMP Connectors.

  • Mounting Type: Free-Hanging (In-Line)
  • Current Rating: 3A
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Color: Black
  • Flammability Rating: UL94 V-0
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Positions: 25
  • Rows: 2
  • Termination: Solder Cup
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Status: Active
