5-747904-5 TE Connectivity
Same model may have multiple batches, images only for reference.

5-747904-5

Part No 5-747904-5
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

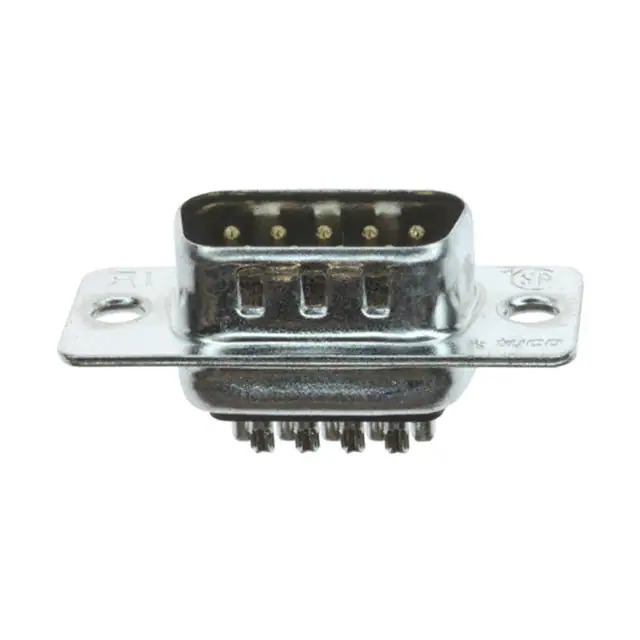

Description CONN D-SUB PLUG 9POS PNL MNT / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features Grounding Indents
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747904
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365144-5-747904-5
Ultra Librarian 3D Model Ultra Librarian 5-747904-5 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 D-Sub Connector Assembly is a high-quality connector designed for various electronic applications.

  • Current Rating: 3A
  • Voltage Rating: 250V
  • Features: Grounding Indents
  • Materials: Brass and Steel with Tin-Plated Finish
  • Connector Type: Plug with Male Pins
  • Termination: Solder Cup
  • Flammability Rating: UL94 V-0
  • Series: AMPLIMITE HD-20
  • Shell Size: 1 (DE, E)
  • Operating Temperature: -55°C to 105°C
