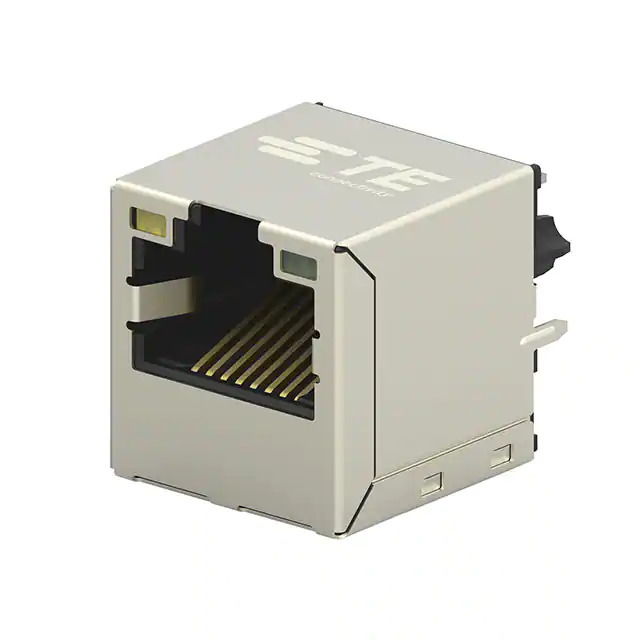

5-2301995-4 TE Connectivity
Same model may have multiple batches, images only for reference.

5-2301995-4

Part No 5-2301995-4
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.665" (16.90mm)
LED Color Green, Yellow - Green, Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Liquid Crystal Polymer (LCP)
Base Product Number 2301995
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362665-5-2301995-4
Ultra Librarian 3D Model Ultra Librarian 5-2301995-4 CAD Model

Description

The TE Connectivity AMP Connectors Modular Connector Jack with Magnetics is a high-performance connector designed for Ethernet applications.

  • Temperature Range: -40°C to 85°C
  • Shielding: Shielded
  • Contact Finish: Gold
  • Compatibility: 10/100/1000 Base-T
  • Features: AutoMDIX
  • Orientation: Vertical
  • Mounting Type: Through-hole
  • Housing Material: Liquid crystal polymer (LCP)
