Same model may have multiple batches, images only for reference.

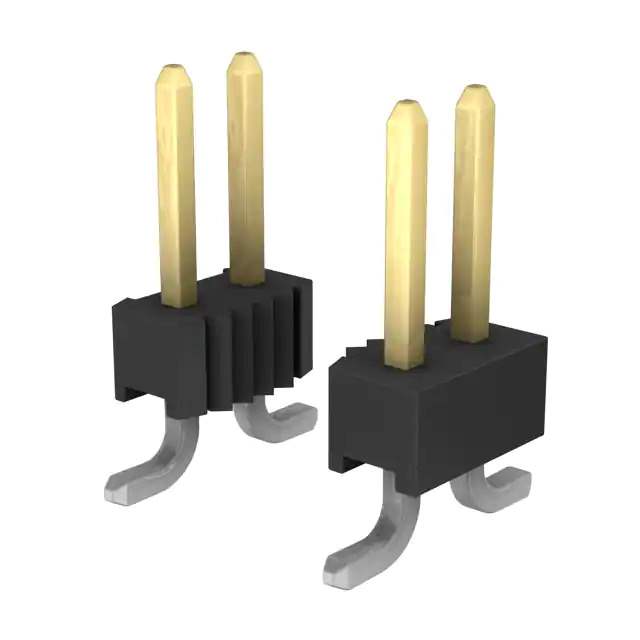

5-147279-3 Real Image
Same model may have multiple batches, images only for reference.

5-147279-3

Part No 5-147279-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 2.54MM / Connector Header Surface Mount 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 147279
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856374-5-147279-3
Ultra Librarian 3D Model Ultra Librarian 5-147279-3 CAD Model

Description

The TE Connectivity rectangular connector, part number 856374-5-147279-3, belongs to the AMPMODU Mod II series.

  • Series: AMPMODU Mod II
  • Type: Male Header
  • Feature: Breakaway
  • Positions: 14
  • Connection Type: Board-to-Board or Cable
  • Termination: Solder
  • Fastening: Push-Pull
  • Package: Tape and Reel or Cut Tape
  • Standard Package: 500 pieces
  • Contact Material: Copper Alloy
  • Contact Finish on Mating: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch: 0.100" (2.54mm)
  • Operating Temperature: Defined by the manufacturer
