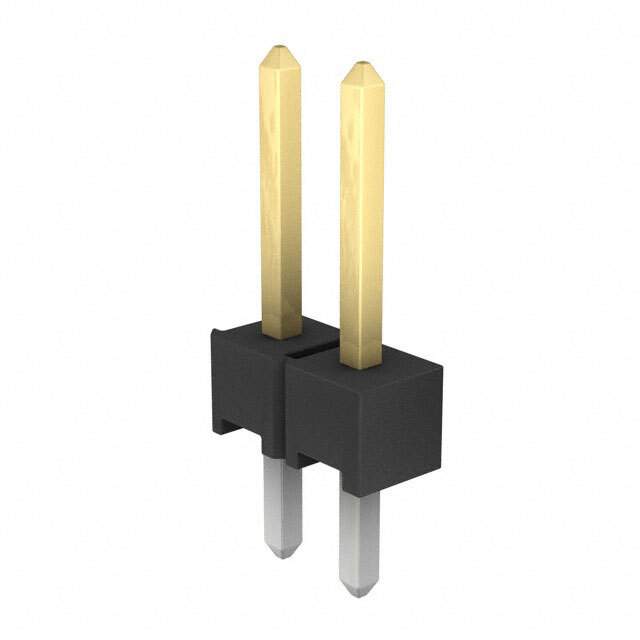

5-146280-2 Real Image
Same model may have multiple batches, images only for reference.

5-146280-2

Part No 5-146280-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000136-5-146280-2
Manufacturer TE Connectivity
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series AMPMODU Mod II
Package Bulk
Termination Solder
Operating Temperature -65°C ~ 105°C
Mounting Type Through Hole
Base Product Number 146280
Product Status Active
Ultra Librarian 3D Model Ultra Librarian 5-146280-2 CAD Model

Description

TE Connectivity's AMPMODU Mod II is a series of rectangular connectors with male pins, designed for through-hole mounting.

  • Manufacturer: TE Connectivity
  • Series: AMPMODU Mod II
  • Connector Type: Rectangular Connectors
  • Contact Type: Male Pins
  • Mounting Type: Through-Hole
  • Termination: Solder
  • Operating Temperature: -65°C to 105°C
  • Base Product Number: 146280
  • Product Status: Active
