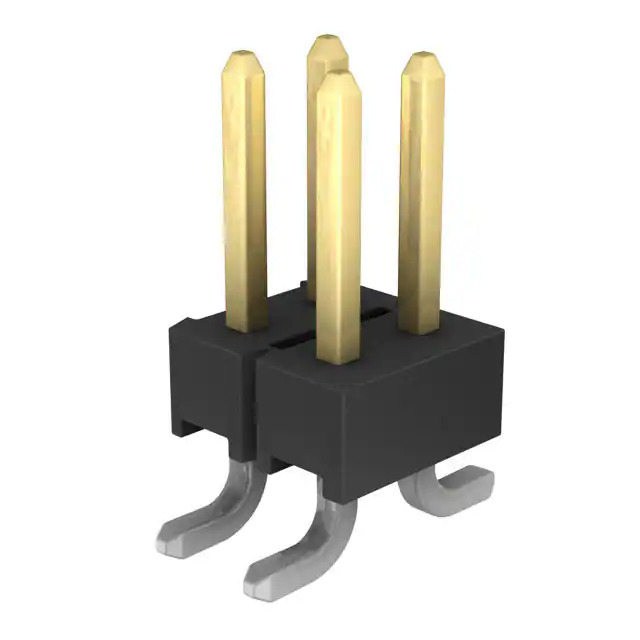

5-146130-1

Name: 5-146130-1
Brand: TE Connectivity
SKU: 1366055
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-146130-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Tube
Product Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	30VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	146130
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366055-5-146130-1
Ultra Librarian 3D Model	Ultra Librarian 5-146130-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod II series is a versatile solution for board-to-board or cable connections.

Mounting Type: Surface Mount
Pitch: 0.100 inches (2.54mm)
Number of Positions: 4
Number of Rows: 2
Contact Material: Copper Alloy
Contact Finish: Gold (Mating), Tin (Post)
Contact Finish Thickness: 30.0µin (0.76µm) (Mating)
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -65°C to 125°C
Current Rating: 3A
