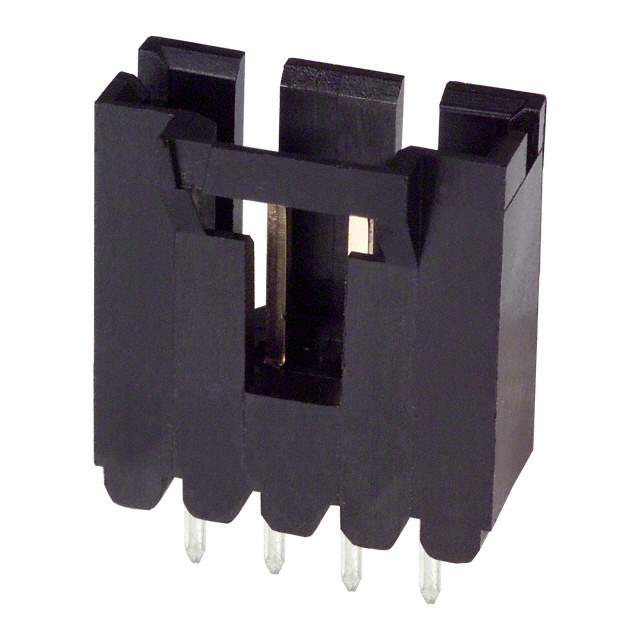

5-103735-3

Part No 5-103735-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT .100 4POS 30AU
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 197769-5-103735-3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5-103735-3 CAD Model

Description

Product Overview

The 5-103735-3 is a reliable and efficient electronic connector known for its durability and versatility in various applications. This component is designed to provide seamless connections in complex electronic systems.

Features and Benefits

  • Durability: Engineered with high-quality materials for long-term use.
  • Versatility: Suitable for multiple applications, accommodating diverse project needs.
  • Compact Design: Requires minimal space, ideal for applications with space constraints.
  • Easy Installation: User-friendly design for quick and efficient setup.

Applications

  • Telecommunication equipment
  • Industrial machinery
  • Consumer electronics
  • Automotive systems

Additional Details

With an emphasis on reliability, the 5-103735-3 connector is built to withstand rigorous use, making it a cost-effective solution for various industrial environments.
