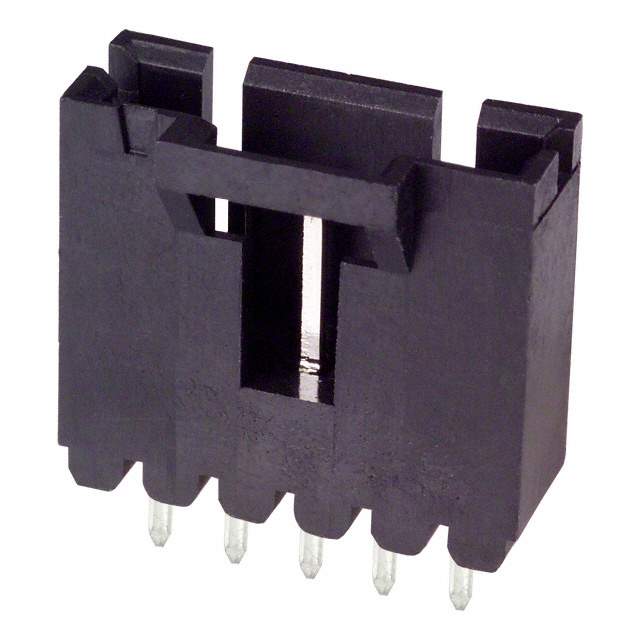

Same model may have multiple batches, images only for reference.

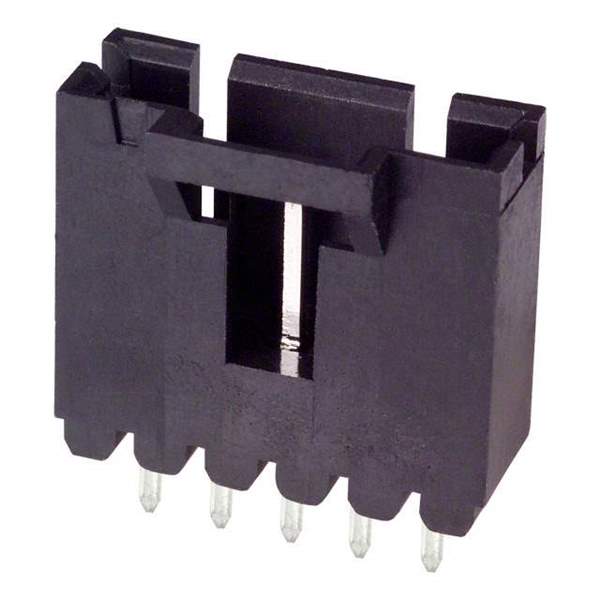

5-103639-4 Real Image
Same model may have multiple batches, images only for reference.

5-103639-4

Part No 5-103639-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS PCB TIN
Datasheet
5-103639-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU MTE
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 763884-5-103639-4
Popularity Medium
Supply and Demand Status Limited
Family Name 103639
Introduction Date September 05, 1997
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5-103639-4 CAD Model

Description

The TE Connectivity AMP Connectors 763884-5-103639-4 is a 5-position header connector used in various applications. The manufacturer of this product is TE Connectivity AMP Connectors.

  • Positions: 5
  • Keying Slot: Yes
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: 1
  • Temperature Range: -65°C ~ 105°C
  • Popularity: Medium
  • Package Type: Tube
  • Mounting Style: Through hole
  • RoHS Compliant: Yes
