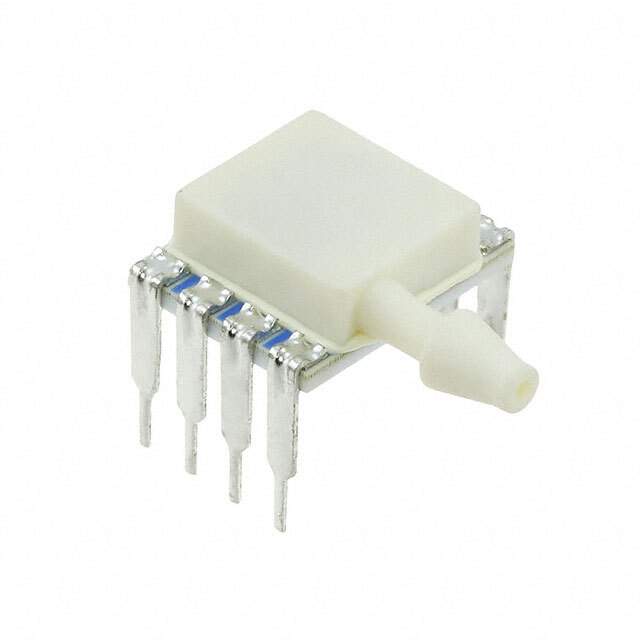

4525DO-SS3AS015AP Real Image1 4525DO-SS3AS015AP Real Image2
Same model may have multiple batches, images only for reference.
4525DO-SS3AS015AP Real Image1 4525DO-SS3AS015AP Real Image2
4525DO-SS3AS015AP Real Image1 4525DO-SS3AS015AP Real Image2
Same model may have multiple batches, images only for reference.

4525DO-SS3AS015AP

Part No 4525DO-SS3AS015AP
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIA 0.14" 14BIT / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.14" (3.56mm) Tube 14 b 8-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr TE Connectivity
Series MS4525DO
Package Tray
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type SPI
Output 14 b
Accuracy ±0.25%
Voltage - Supply 3.3V
Port Size Male - 0.14" (3.56mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 90PSI (620.53kPa)
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Supplier Device Package -
Base Product Number 4525
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Standard Package 10 pcs
Win Source Part Number 1380827-4525DO-SS3AS015AP
Ultra Librarian 3D Model Ultra Librarian 4525DO-SS3AS015AP CAD Model

Description

The MS4525DO is a temperature-compensated pressure sensor that is designed for board mount applications.

  • Output: SPI with 14-bit Resolution
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 90PSI (620.53kPa)
  • Port Size: Male, 0.14" (3.56mm) Tube
  • Port Style: Barbed
  • Voltage Supply: 3.3V
  • Mounting: Through-Hole
  • Package: 8-DIP Module
  • Temperature Range: -25°C to 105°C
  • Moisture Sensitivity Level: 1 (Unlimited)
  • ECCN: EAR99
  • Manufacturer: TE Connectivity
