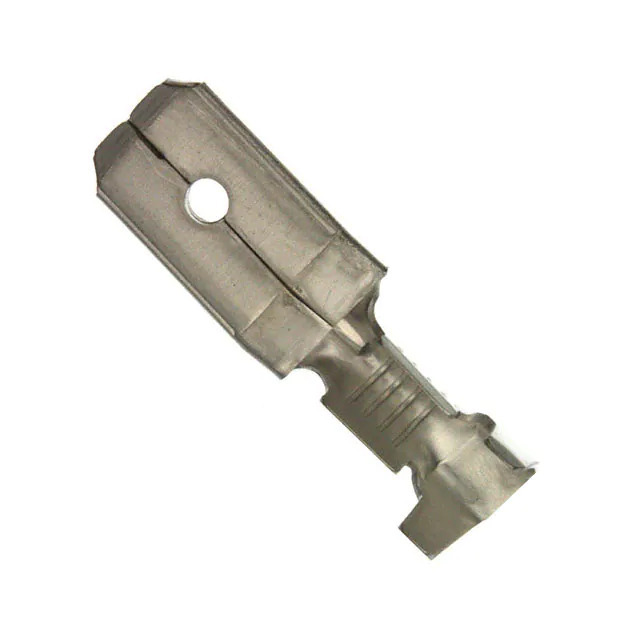

Same model may have multiple batches, images only for reference.

42474-4

Name: 42474-4
Brand: TE Connectivity
SKU: 1364746
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	42474-4
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC TAB 14-18AWG 0.250 CRIMP / 0.250" (6.35mm) Quick Connect Male 14-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Faston
Package	Tape & Reel (TR)
Product Status	Active
Terminal Type	Standard
Gender	Male
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.370" (9.40mm)
Length - Overall	0.810" (20.57mm)
Termination	Crimp
Wire Gauge	14-18 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	-
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.110" ~ 0.150" (2.79mm ~ 3.81mm)
Base Product Number	42474
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364746-42474-4
Ultra Librarian 3D Model	Ultra Librarian 42474-4 CAD Model

Description

The TE Connectivity AMP Connectors Faston series is a male quick disconnect connector terminal.

Mounting Type: Free Hanging (In-Line)
Wire Gauge: 14-18 AWG
Length: 0.810" (20.57mm)
Tab Width: 0.250" (6.35mm)
Contact Finish: Tin
Contact Material: Brass
Series: Faston
