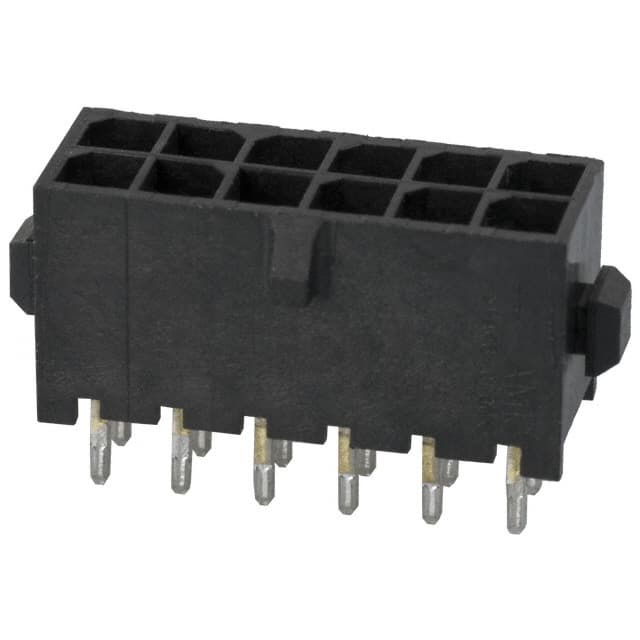

4-794630-2
Same model may have multiple batches, images only for reference.

4-794630-2

Part No 4-794630-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Micro MATE-N-LOK
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794630
Standard Package 169 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856137-4-794630-2
Ultra Librarian 3D Model Ultra Librarian 4-794630-2 CAD Model

Description

The Micro MATE-N-LOK series from TE Connectivity offers a range of rectangular connectors designed for headers and male pins.

  • Positions: 12
  • Fastening Type: Locking Ramp
  • Termination: Press-Fit, Solder
  • Contact Material: Brass
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Application: Board-to-Cable/Wire
  • Pitch: 0.118" (3.00mm)
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 169 pieces
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Black
  • Temperature Range: -40°C to 105°C
  • Product Status: Active
  • ECCN: EAR99
