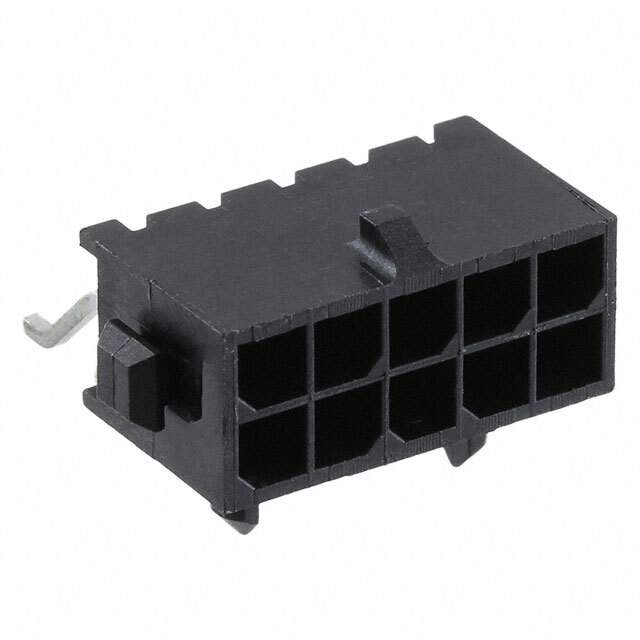

Same model may have multiple batches, images only for reference.

4-794622-0

Name: 4-794622-0
Brand: TE Connectivity
SKU: 421000
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	4-794622-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADR 10POS DL R/A 15AU SMD
Datasheet	4-794622-0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Cut Reel
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	Varies by Wire Gauge
Voltage Rating	250V
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	General Purpose
Win Source Part Number	1006647-4-794622-0
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 4-794622-0 CAD Model

Description

The TE Connectivity AMP Connectors 1006647-4-794622-0 is a header connector with male pins.

Positions Loaded: 10
Features: Board Lock
Mounting: Surface Mount, Right Angle
Pitch: 0.118 inches (3.00mm)
Shrouded: 4 Walls
Voltage Rating: 250V
Current Rating: Varies by wire gauge
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Contact Finish: Gold Plated
Contact Finish Thickness: 15μin (0.38μm)
Post Finish: Tin Plated
Post Finish Thickness: 100μin (2.54μm)
Package: Cut Reel
Popularity: Medium
