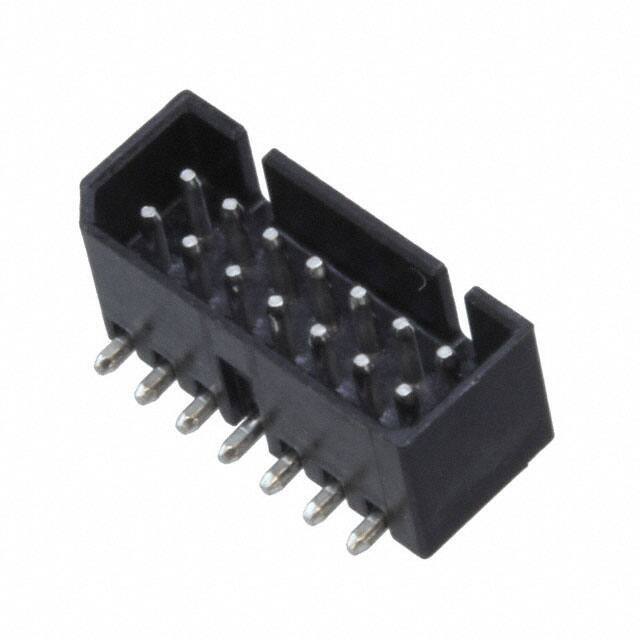

4-176891-4 TE Connectivity
Same model may have multiple batches, images only for reference.

4-176891-4

Part No 4-176891-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1.25MM / Connector Header Surface Mount 14 position 0.049" (1.25mm)
Datasheet
4-176891-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Fine Pitch
Package Tape & Reel (TR)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.156" (3.96mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyphenylene Sulfide (PPS)
Features -
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 50V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number 176891
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364432-4-176891-4
Ultra Librarian 3D Model Ultra Librarian 4-176891-4 CAD Model

Description

The Fine Pitch series by TE Connectivity AMP Connectors provides male pin headers.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Fine Pitch
  • Mounting Type: Surface Mount
  • Pitch: 0.049" (1.25mm)
  • Design: Shrouded, 4-Wall Shrouding
  • Application: Board-to-Board
  • Current Rating: 0.5A
  • Temperature Range: -30°C to 105°C
  • Contact Material: Brass
  • Insulation Material: Polyphenylene Sulfide (PPS)
