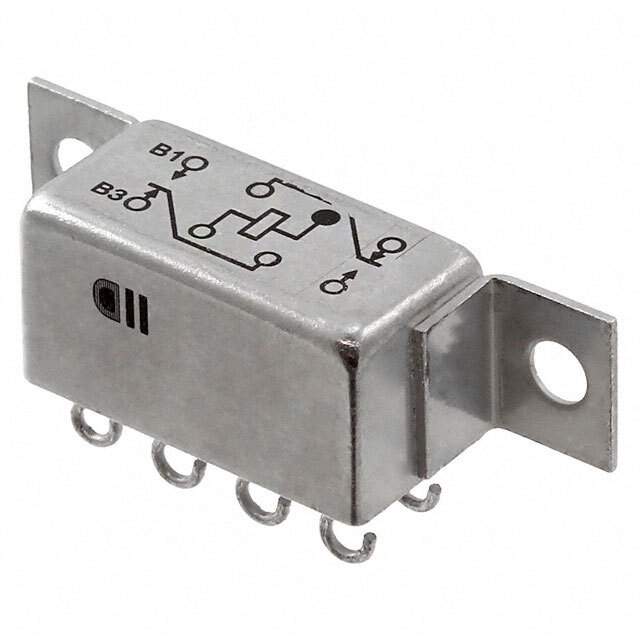

3SBC1506A2

Name: 3SBC1506A2
Brand: TE Connectivity
SKU: 1188090
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	3SBC1506A2
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOS DPDT 2A 26.5VDC / General Purpose Relay DPDT (2 Form C) Chassis Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Mfr	TE Connectivity Aerospace, Defense and Marine
Series	Military, MIL-R-39016/13, 3SBC, CII
Package	Bulk
Mounting Type	Chassis Mount
Coil Voltage	26.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Switching Voltage	115VAC, 28VDC - Max
Coil Current	19.6 mA
Coil Type	Non Latching
Termination Style	Solder Hook
Seal Rating	Sealed - Hermetically
Must Operate Voltage	13.5 VDC
Must Release Voltage	1.5 VDC
Operate Time	4 ms
Release Time	4 ms
Temperature Range - Operating	-65°C ~ 125°C
Relay Type	General Purpose
Coil Resistance	1.35 kOhms
Base Product Number	3SBC1
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Other Names	1122-1311,3SBC1506A2-ND,M39016/13-060L-MIL,2-1617072-4,3SBC1506A2-MIL,M39016/13-060L
Standard Package	1
Win Source Part Number	1188090-3SBC1506A2
Ultra Librarian 3D Model	Ultra Librarian 3SBC1506A2 CAD Model

Alternative Products

Description

The TE Connectivity Aerospace, Defense and Marine's 3SBC1506A2 is a general-purpose relay that has a DPDT (2 Form C) contact form.

Contact Form: DPDT (2 Form C)
Grade: Military
Sealing: Sealed-Hermetically
Coil Resistance: 1.35 kOhms
Coil Voltage: 26.5VDC
Switching Voltage: 115VAC, 28VDC
Contact Rating: 2A
Mounting: Chassis
Operating Temperature: -65°C to 125°C
Cross-Reference: 2-1617072-4
RoHS: Non-Compliant
