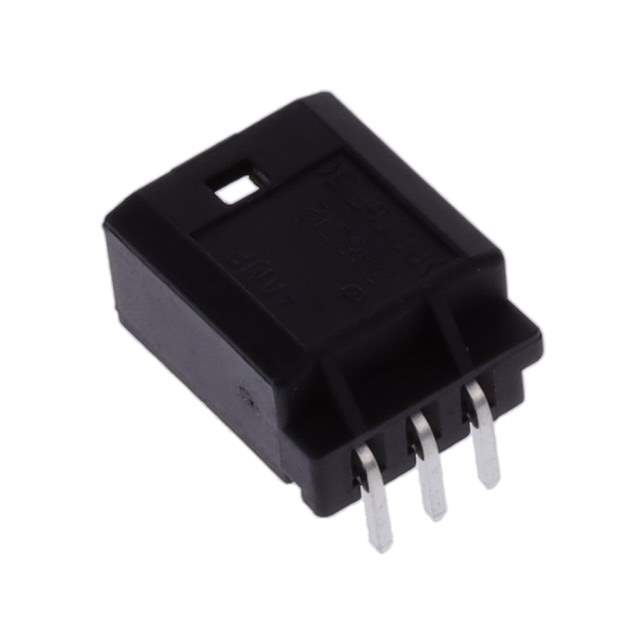

368312-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Micro Quadlok
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.244" (6.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Bronze
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 120°C
Insulation Color Black
Base Product Number 368312
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -368312-1-SI,-368312-1-CSI,A142561,-368312-1-LSI
Standard Package 2,500
Win Source Part Number 982990-368312-1
Ultra Librarian 3D Model Ultra Librarian 368312-1 CAD Model

Description

The Micro Quadlok is a connector with 3 positions from TE Connectivity AMP Connectors.

  • Connector Type: Header
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Bulk
  • Standard Package: 2,500
  • Contact Material: Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Style: Board to cable/wire
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Insulation Color: Black
  • Mounting Type: Through Hole, Right Angle
  • Shrouding: Shrouded - 4 Wall
  • Contact Length-Post: 0.122" (3.10mm)
  • Insulation Height: 0.244" (6.20mm)
  • Contact Shape: Square
  • Temperature Range: -40°C ~ 120°C
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
