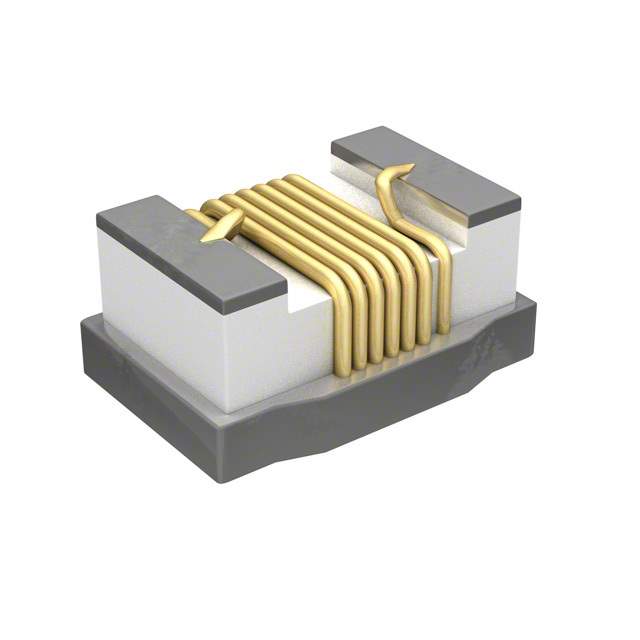

36502AR22JTDG

Name: 36502AR22JTDG
Brand: TE Connectivity
SKU: 1315059
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	36502AR22JTDG
Manufacturer	TE Connectivity
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TE Connectivity Passive Product
Series	3650, Sigma Inductors
Package	Tape & Reel
Type	Wirewound
Inductance	220 nH
Tolerance	±5%
Current Rating (Amps)	400 mA
Shielding	Unshielded
DC Resistance (DCR)	700mOhm Max
Q @ Freq	50 @ 250MHz
Frequency - Self Resonant	850MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Dimension	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max)	0.060" (1.52mm)
Base Product Number	36502
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1315059-36502AR22JTDG
Ultra Librarian 3D Model	Ultra Librarian 36502AR22JTDG CAD Model

Alternative Products

Description

The 1315059-36502AR22JTDG is a wirewound fixed inductor from the Sigma Inductors series.

Inductor Type: Wirewound
Series: Sigma Inductors
Shielding: Unshielded
Inductance: 220nH
Tolerance: ±5%
Current Rating: 400mA
DC Resistance: 700mOhm max
Temperature Range: -40°C to 125°C
Height: 0.060" (1.52mm) Seated
Package/Case: Nonstandard
Supplier Device Package: 0805 (2012 Metric)
Q @ Freq: 50 @ 250MHz
Self-Resonant Frequency: 850MHz
Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
