Same model may have multiple batches, images only for reference.

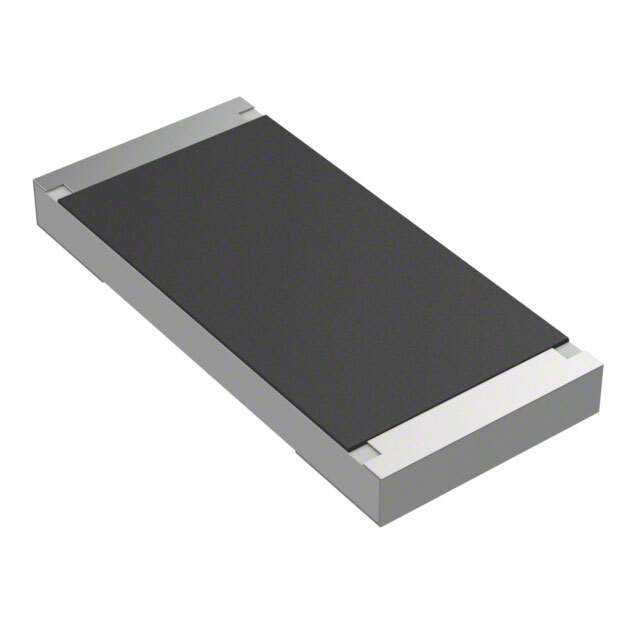

35503K3JT Real Image
Same model may have multiple batches, images only for reference.

35503K3JT

Part No 35503K3JT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 3550 3K3 5%  /  3.3 kOhms ±5% 5W Chip Resistor Nonstandard Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3550, CGS
Package Tape & Reel
Resistance 3.3 kOhms
Tolerance ±5%
Power (Watts) 5W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Nonstandard
Dimension 0.433" L x 0.197" W (11.00mm x 5.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1-2176405-4,A143842TR,A143842DKR,A143842CT
Standard Package 1,000
Win Source Part Number 1038265-35503K3JT
Ultra Librarian 3D Model Ultra Librarian 35503K3JT CAD Model

Description

This is a chip resistor with a 3.3 kOhms resistance and a power of 5W.

  • Resistance: 3.3 kOhms
  • Power: 5W
  • Component Type: Chip Resistor
  • Series: 3550, CGS
  • Mounting: Surface Mount
  • Package: Nonstandard
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Seated Height: 0.047 inches (1.20mm)
  • Dimensions: 0.433 inches L x 0.197 inches W (11.00mm x 5.00mm)
  • Terminations: 2
  • Composition: Thick Film
  • Operating Temperature: -55°C to 155°C
  • Alternative Parts (Cross-Reference): 35503K3JT1-2176405-4
  • Package: Tape and Reel
  • Standard Package: 1,000
