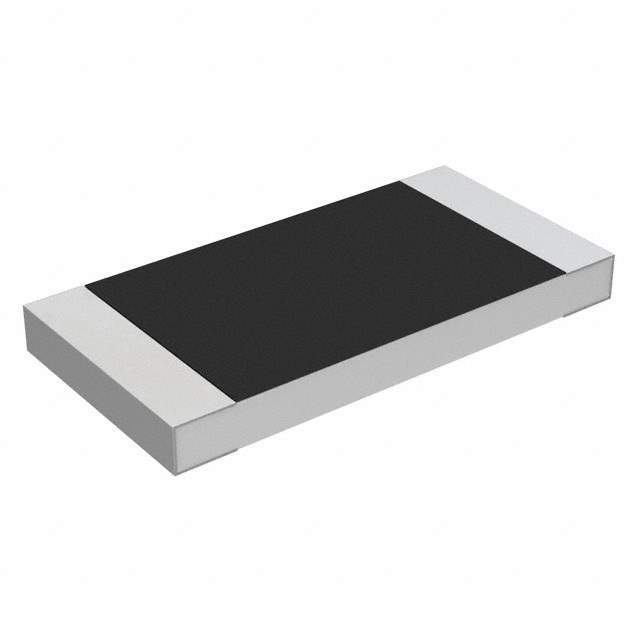

The 35205R6JT is a surface mount chip resistor manufactured by TE Connectivity. Chip resistors are fundamental components in electronic circuits, providing a specific resistance value to control current flow and voltage levels. Surface mount resistors are designed for automated assembly onto printed circuit boards (PCBs), contributing to efficient and cost-effective manufacturing processes.

Applications

• Consumer electronics (smartphones, tablets, laptops)
• Industrial control systems
• Automotive electronics
• Medical devices
• Power supplies
• LED lighting

Features

• Surface mount technology (SMT) for automated assembly
• Compact size (typically 0805 or 1206 package)
• Precise resistance value (5.6 Ohms in this case)
• High stability and reliability
• Wide operating temperature range
• RoHS compliant (Restriction of Hazardous Substances)
• Available in various tolerance levels (e.g., 1%, 5%)

Benefits

• Enables miniaturization of electronic devices
• Reduces assembly costs through automated placement
• Ensures consistent and reliable performance
• Provides accurate current limiting and voltage division
• Meets environmental regulations for hazardous substance reduction

Additional Details

The 'JT' suffix in the part number likely indicates the tolerance rating, packaging type, or temperature coefficient. Typical specifications include a power rating (e.g., 0.125W or 0.25W), a voltage rating, and a temperature coefficient of resistance (TCR). The TCR specifies how much the resistance changes with temperature, usually expressed in parts per million per degree Celsius (ppm/°C). The resistor is constructed using a ceramic substrate with a resistive film deposited on it. The resistive film is laser-trimmed to achieve the desired resistance value. Terminations are typically made of nickel and tin plating for solderability.
