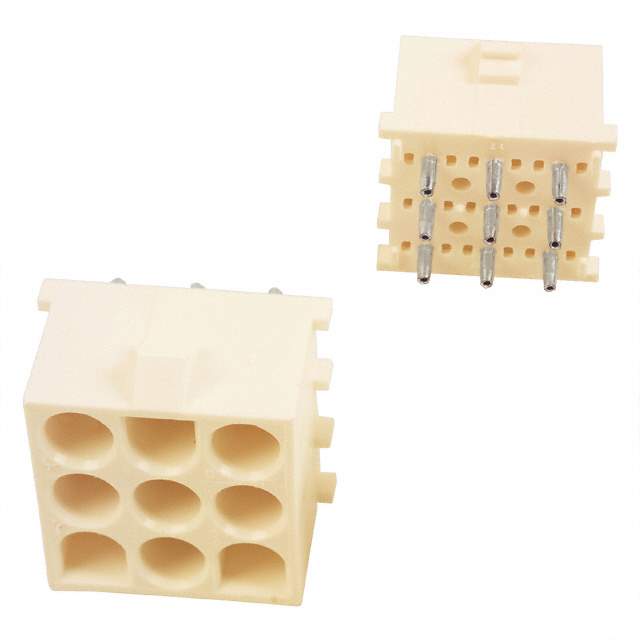

350432-1 Real Image
Same model may have multiple batches, images only for reference.

350432-1

Part No 350432-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 9POS VERT .250 TIN
Datasheet
350432-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications General
Win Source Part Number 763359-350432-1
Popularity Medium
Supply and Demand Status Balance
Family Name 350432
Introduction Date April 17, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 350432-1 CAD Model

Description

The TE Connectivity AMP Connectors 350432-1 is a board-to-cable/wire type connector manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Board-to-Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Positions: 9
  • Contact Loading: Male Pins
  • Mounting Type: Through Hole
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Halogen Free: Yes
