Products specifications

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.181" (4.60mm)
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.375" (9.53mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 12A
Voltage Rating 250VAC
Applications General Purpose
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811485-350209-1
Ultra Librarian 3D Model Ultra Librarian 350209-1 CAD Model

Description

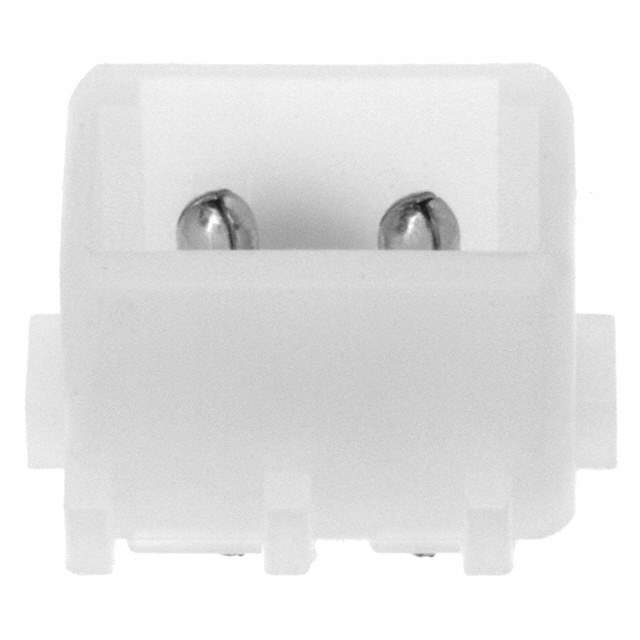

The TE Connectivity AMP Connectors 811485-350209-1 is a header connector with a mounting style of through-hole.

  • Positions: two
  • Contacts: male pins
  • Contact Material: copper alloy
  • Voltage Rating: 250VAC
  • Connector Style: board to cable/wire
  • Pitch-Mating: 0.200 inches (5.08mm)
  • Contact Finish-Mating: tin
  • Flammability Rating: UL94 V-2
  • Temperature Range: -55°C to 85°C
  • Package Quantity: 100 pieces
